Home > Products > Umbrella > Garden Umbrella > Custom 3×3m Mini Roma Rotating Cantilever Umbrella with Tilt Options

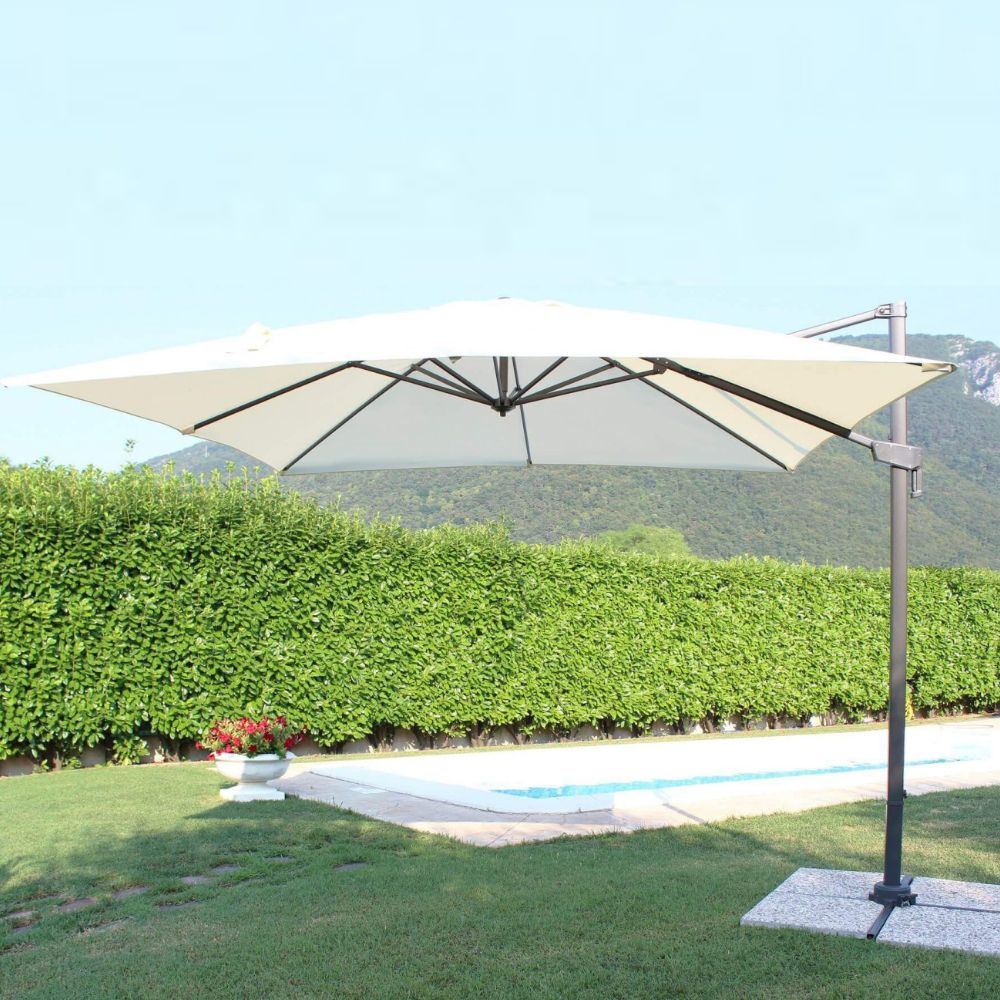

Custom 3×3m Mini Roma Rotating Cantilever Umbrella with Tilt Options
The VESTA Mini Roma umbrella uses a rectangular side mast to keep the shaded area free from a central pole. The 3×3m reference model combines a 45×64mm aluminium mast, 20×40mm hanging arm, eight 13×22mm metal ribs and a rotating cross-base assembly.
Buyers can develop square or rectangular versions with tilt, wood-look frame finish or optional LED lighting. Each option changes the bill of materials and must be specified during quotation.
Model:VST-RXA005-MR
Send Inquiry
Product Description
PRODUCT PARAMETERS
| Parameter | Details |
|---|---|
| Product Type | Mini Roma Rotating Cantilever Patio Umbrella |
|
|
|
| Standard Size | 3 × 3 m |
| Optional Sizes | 2.5 × 2.5 m and 2 × 3 m |
| Reference Overall Height | 250 cm for the compared 3 × 3 m |
| Canopy Fabric | 180 g/m² polyester |
| Main Mast | Aluminium rectangular profile, 45 × 64 mm |
| Hanging Arm | Metal rectangular profile, 20 × 40 mm |
| Ribs | 8 metal ribs, 13 × 22 mm |
| Rotation | Rotating side-pole system |
|
|
|
| Frame Finish | Standard powder coat or optional wood-look finish |
| Lighting | Optional LED rib lighting; electrical specification to be confirmed |
| Cross Base | Included on reference version; ballast weights sold separately unless quoted |
| Reference Product Weight | 17 kg for one 3 × 3 m configuration |
| Reference MOQ | 50 Pieces |
| Water Resistance | Subject to production fabric, seams and finished-product test |
| UV Performance | Subject to production fabric test report |
| Customization | Size, fabric, canopy color, logo, tilt, finish, LED and packaging |
| Product Origin | China |
PRODUCT DETAILS
ROTATING OFFSET FRAME
The side mast allows the canopy to extend over lounge groups, dining tables or poolside furniture. A rotating base mechanism helps reposition the canopy without moving the ballast system.
SQUARE AND RECTANGULAR SIZE OPTIONS
The reference family covers 3×3m, 2.5×2.5m and 2×3m footprints. Rib length, canopy pattern, packaging and ballast requirement may vary by size;
KEY FEATURES
Approx. 3×3m main size
Optional 2.5×2.5m and 2×3m formats

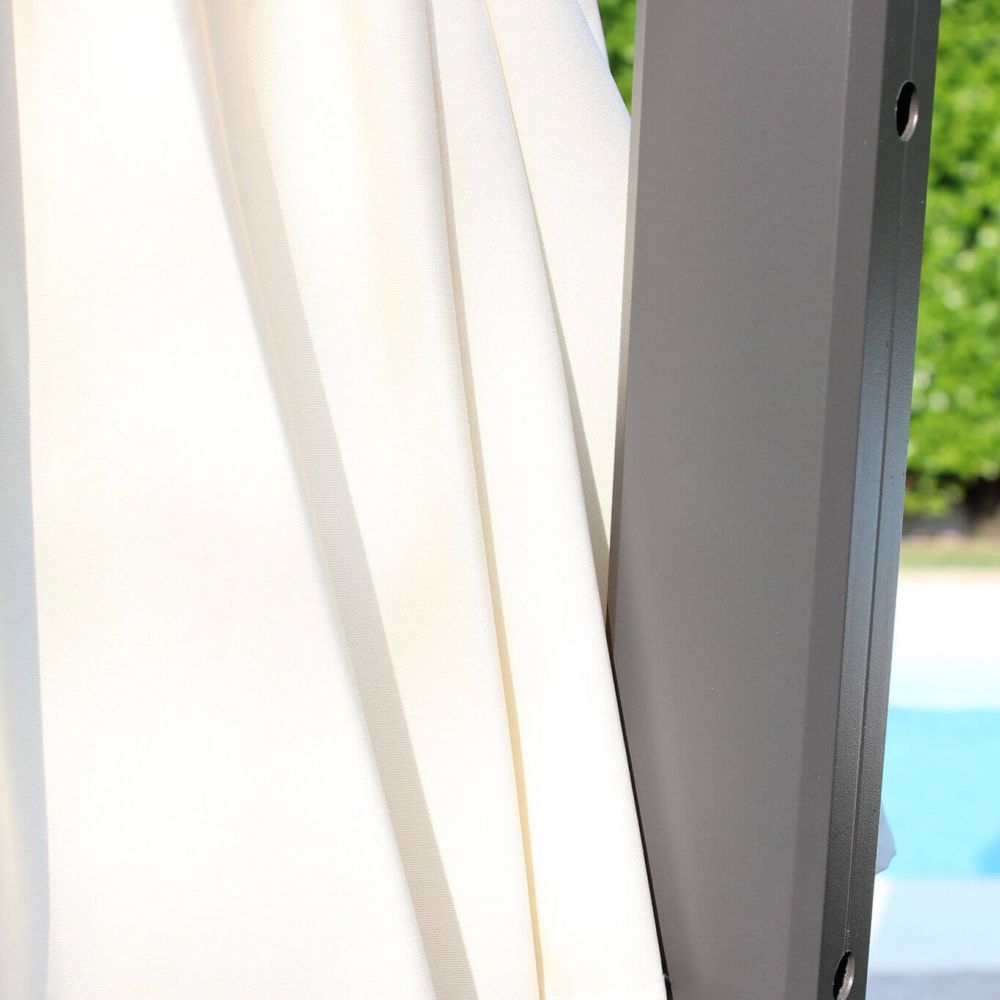

Approx. 45×64mm aluminium side mast
Approx. 20×40mm metal hanging arm

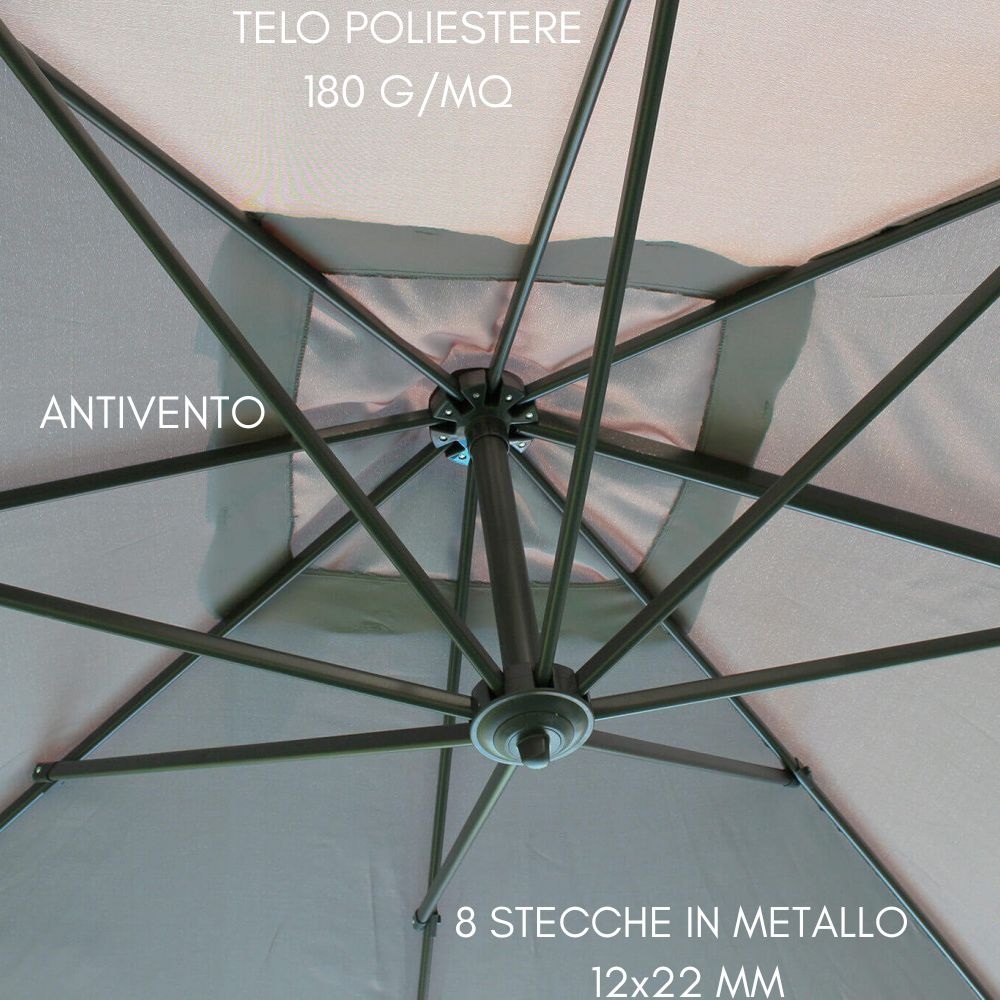

Eight approx. 13×22mm metal ribs

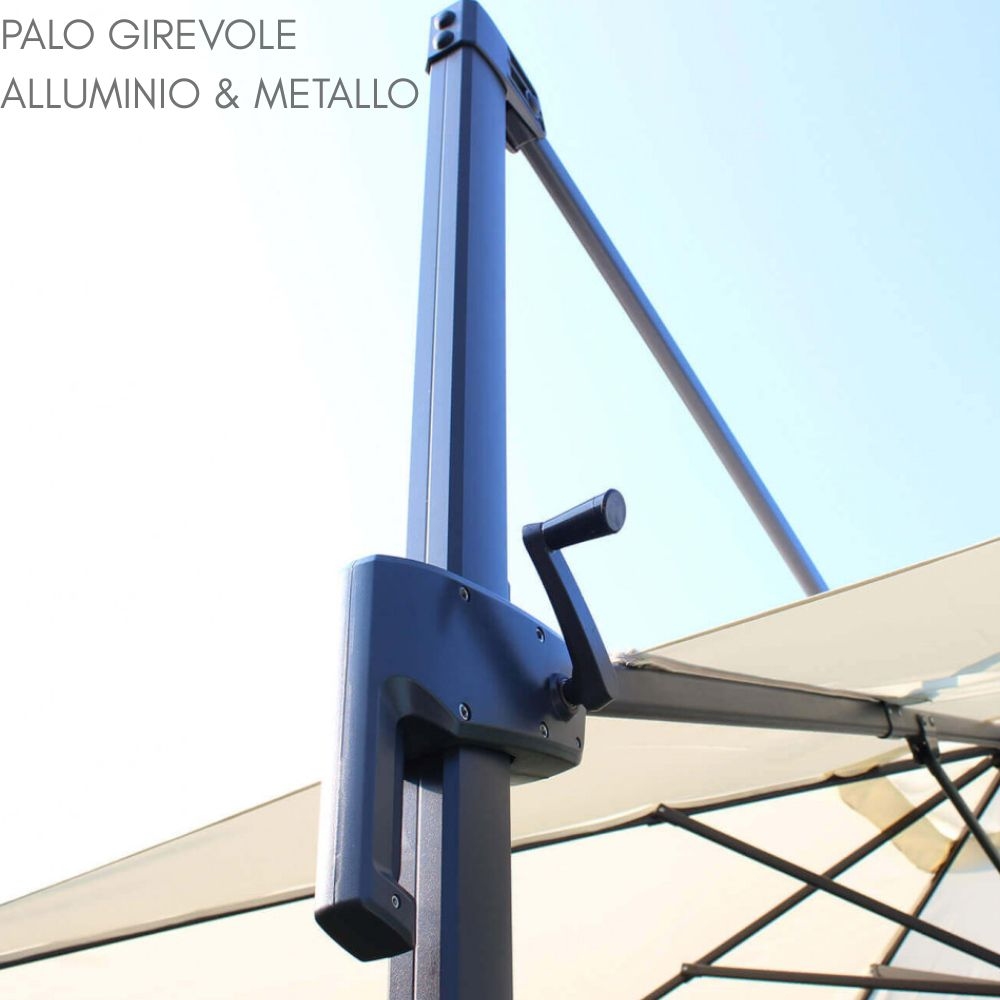

Rotating cross-base structure
Optional tilt mechanism
Optional wood-look frame finish
Optional LED rib lighting
CUSTOM DESIGN OPTIONS
Square or rectangular canopy size
Polyester weight, coating and Pantone color
Original logo printing
Standard or wood-look frame finish
Tilt and rotation-lock configuration
LED color and power-system options
Ballast plates or fixed-base solutions
Protective cover and spare canopy
Private-label instructions and export packaging
RECOMMENDED APPLICATIONS
Hotel and resort pool decks
Restaurant and café terraces
Villa patios and outdoor lounges
Garden-furniture importers and retailers
Contract outdoor projects and private-label ranges
WHOLESALE ORDERS
Please provide order quantity, target size, canopy color and fabric, tilt requirement, frame finish, LED specification, logo artwork, base or ballast requirement, packaging and destination country.
