3x6m Steel Folding Canopy Tent with Four Sidewalls

A semi-automatic folding canopy in the nominal 3x6m size class, shown in blue with a doorway and window sidewalls. The reference uses a steel frame with 33mm upper legs and 25mm lower legs. For orders from 200 sets, confirm the actual erected footprint, fabric grade and four-wall arrangement, then request branding and packing costs.

Model:VST-GZ3060

Send Inquiry

Product Description

Parameter	Details
Model	VST-GZ3060
Product Type	Semi-Automatic Folding Canopy
Nominal Size Class	3 x 6 m
Listed Extended Dimensions	5.70 x 2.88 m;
Frame Material	Steel
Upper / Lower Leg Sections	33 x 33 mm / 25 x 25 mm
Outer / Inner Leg Thickness	0.7 mm / 0.6 mm
Cross Arm Thickness	0.5 mm
Reference Configuration	Roof + Frame + 4 Sidewalls
Reference Colour	Blue
Fabric Options	800D / 600D / 420D listed;
Printing	Screen Printing / Heat Transfer Options
MOQ	200 Sets
Product Origin	China

PLAN THE WALL LAYOUT AROUND THE EVENT

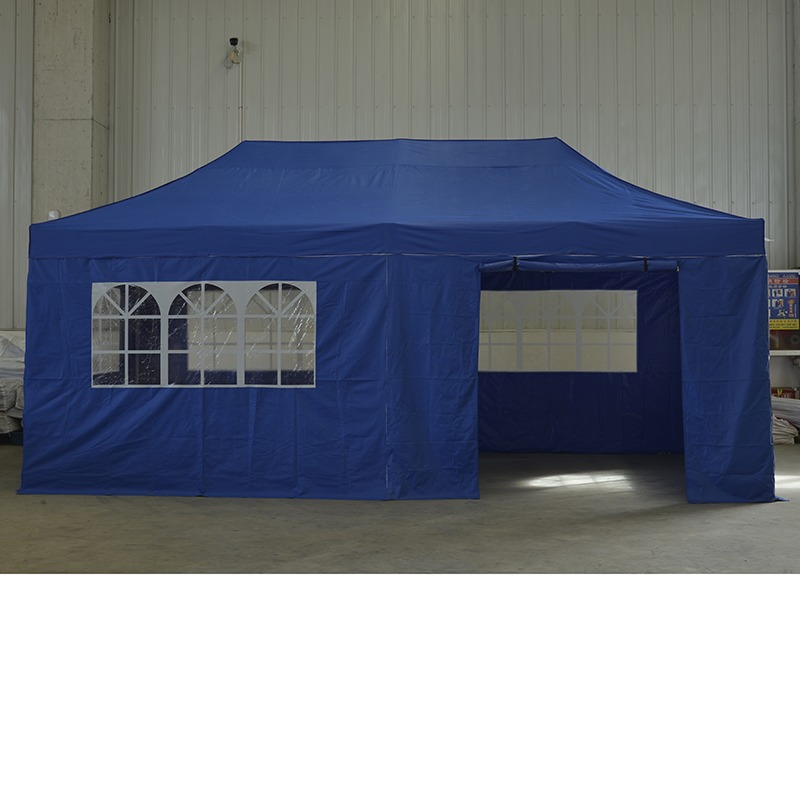

The blue reference canopy is shown with window walls and an opening for access. This layout can suit sales stands, registration areas and temporary event storage. Before ordering, specify the position of each window and doorway, how the walls attach and whether they can be removed individually.

USE THE ACTUAL FOOTPRINT FOR YOUR SPACE PLAN

This model is marketed in the 3x6m size class, while the detailed table lists extended dimensions of 5.70 x 2.88m. Ask for a dimensioned drawing and an erected sample measurement when fitting the canopy to a fixed pitch. Also confirm usable doorway height and the leg height settings.

COMPARE THE STEEL AND FABRIC SPECIFICATION

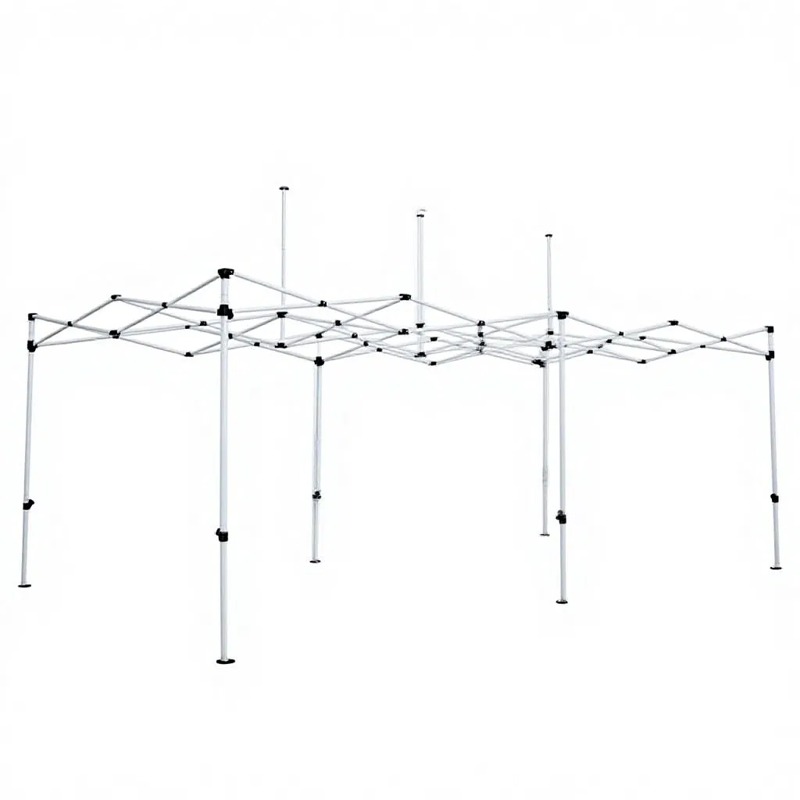

The listed frame uses 33mm upper legs and 25mm lower legs, with different thicknesses for the legs and cross arms. Fabric options are offered in several grades. Specify the selected cloth, coating, stitching and seam treatment in the quotation so a low-cost roof is not compared with a different fabric package.

GET THE COMPLETE SET PRICE BEFORE BOOKING FREIGHT

For a 200-set inquiry, send your wall layout, colour, artwork and destination. Request the frame, roof, four walls and any bag or anchors as an itemised set. Confirm packed gross weight and carton dimensions for that exact configuration, and agree the sample and production schedule before planning shipment.
