Custom 10×10FT Square Solar LED Cantilever Patio Umbrella

The VESTA 10×10FT square cantilever patio umbrella provides offset shade without a center pole passing through the seating area. The reference model combines a large square canopy with four-level tilt, 360-degree rotation and integrated solar LED lighting.A powder-coated steel cross base is included in the reference configuration, while ballast is ordered separately.

Model:VST-CPU10-SL

Send Inquiry

Product Description

PRODUCT PARAMETERS

Parameter	Details
Product Type	Square Offset / Cantilever Solar LED Patio Umbrella
Canopy Size	10 × 10 ft / 305 × 305 cm
Reference Overall Height	9 ft / 274 cm – confirm sample measurement
Reference Edge Clearance	6.8 ft / 207 cm – confirm sample measurement
Canopy Material	Polyester reference canopy; GSM and coating to be confirmed
Canopy Construction	Square Canopy with Top Vent

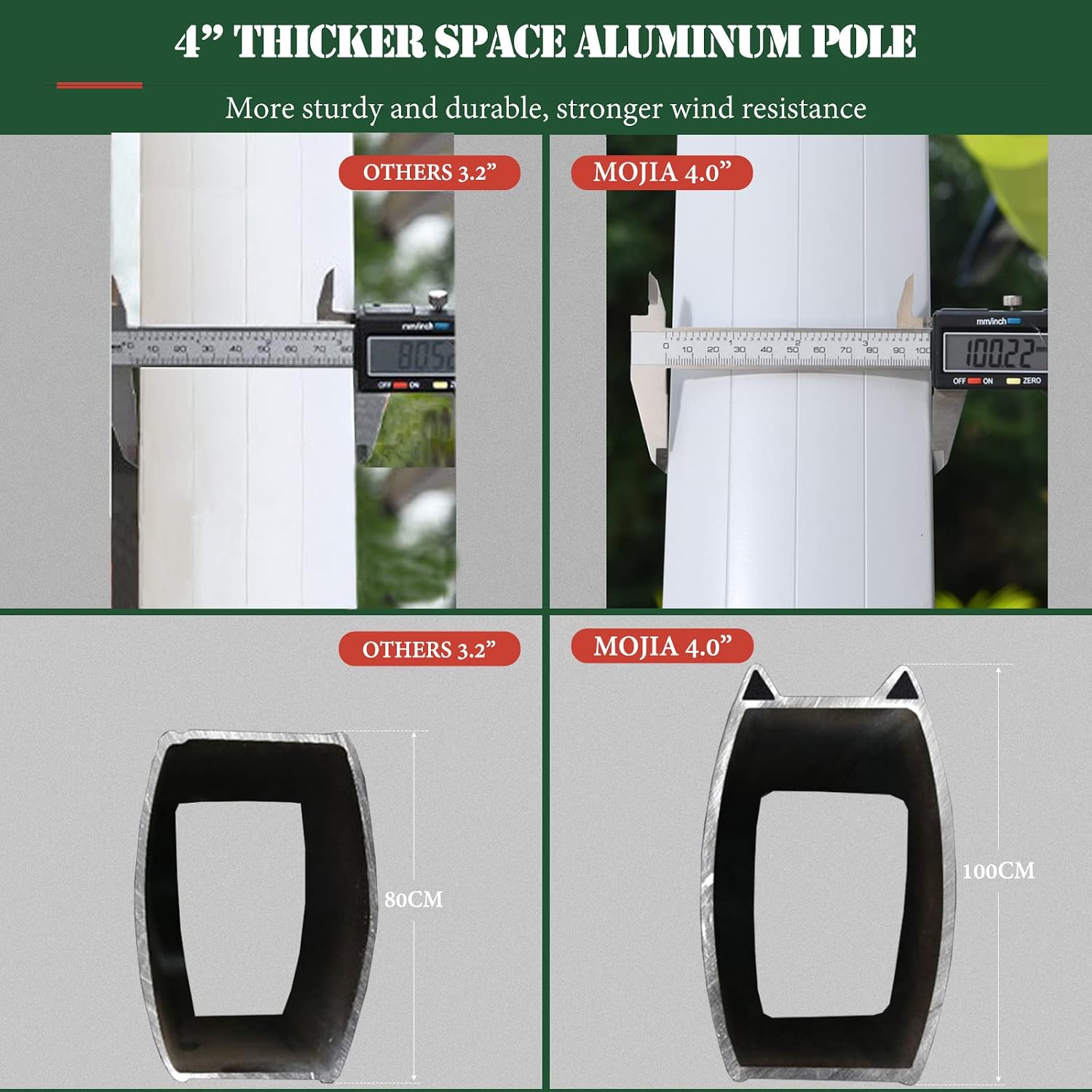

Frame	Large-section offset mast and multi-rib frame; final alloy and section to be confirmed
Frame Finish	Powder-coated finish on reference model
Opening System	Hand-Crank / Sliding Handle Assembly
Tilt Adjustment	4-Level Tilt
Rotation	360-Degree Horizontal Rotation by Foot Pedal
Lighting	Integrated Solar LED Lighting; count and electrical specification to be confirmed
Center Light	Integrated hub light shown on reference model
Cross Base	Powder-coated steel cross base included on reference model
Ballast	Weight slabs, sandbags or fixed anchors not included unless quoted
Suggested MOQ	50 Pieces
Water / UV Performance	Subject to selected fabric and complete-product test reports
Electrical Compliance	Battery, panel, LED and target-market requirements to be confirmed
Customization	Canopy, logo, frame finish, lighting, cover, base, packaging and spare parts
Product Origin	China

PRODUCT DETAILS

10×10FT OFFSET SHADE

The square canopy covers dining, lounge or hospitality furniture while the mast remains to one side. Reference overall and clearance dimensions should be verified against the final frame geometry and base configuration.

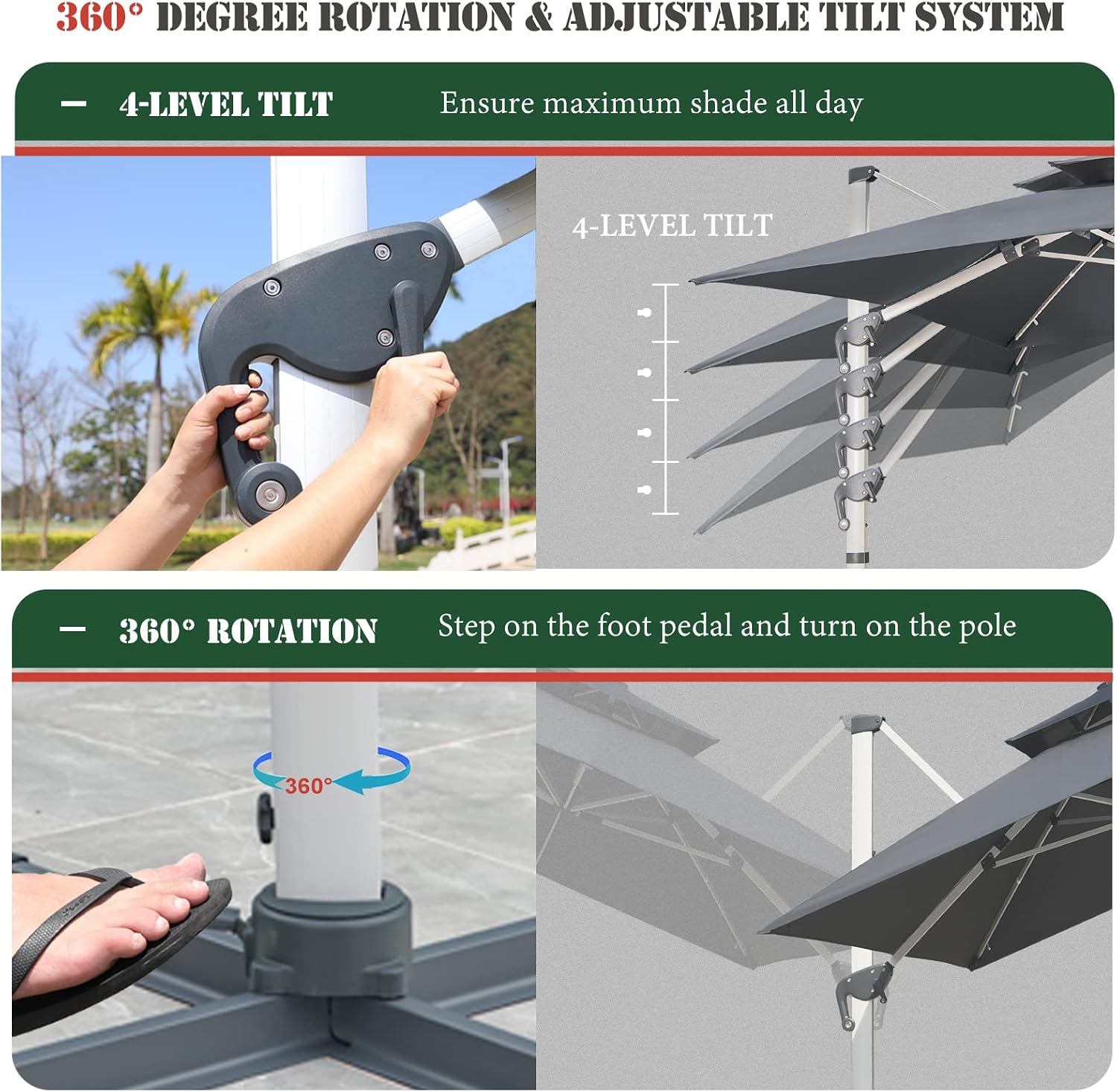

FOUR-LEVEL TILT AND 360-DEGREE ROTATION

The handle assembly adjusts the canopy through four tilt positions. A foot pedal releases the mast for horizontal rotation. These mechanisms allow the shade direction to change without moving the weighted base, subject to correct installation and clear operating space.

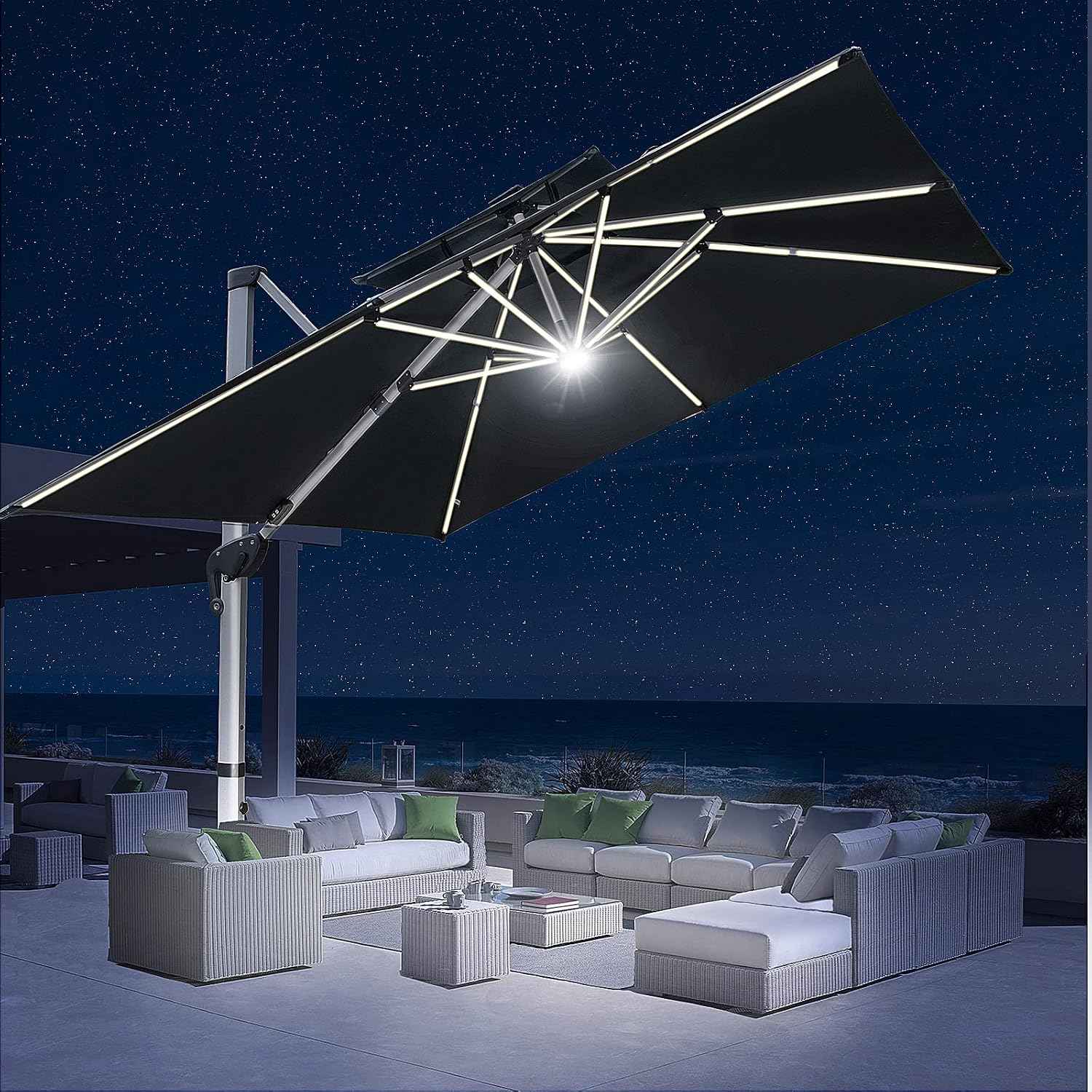

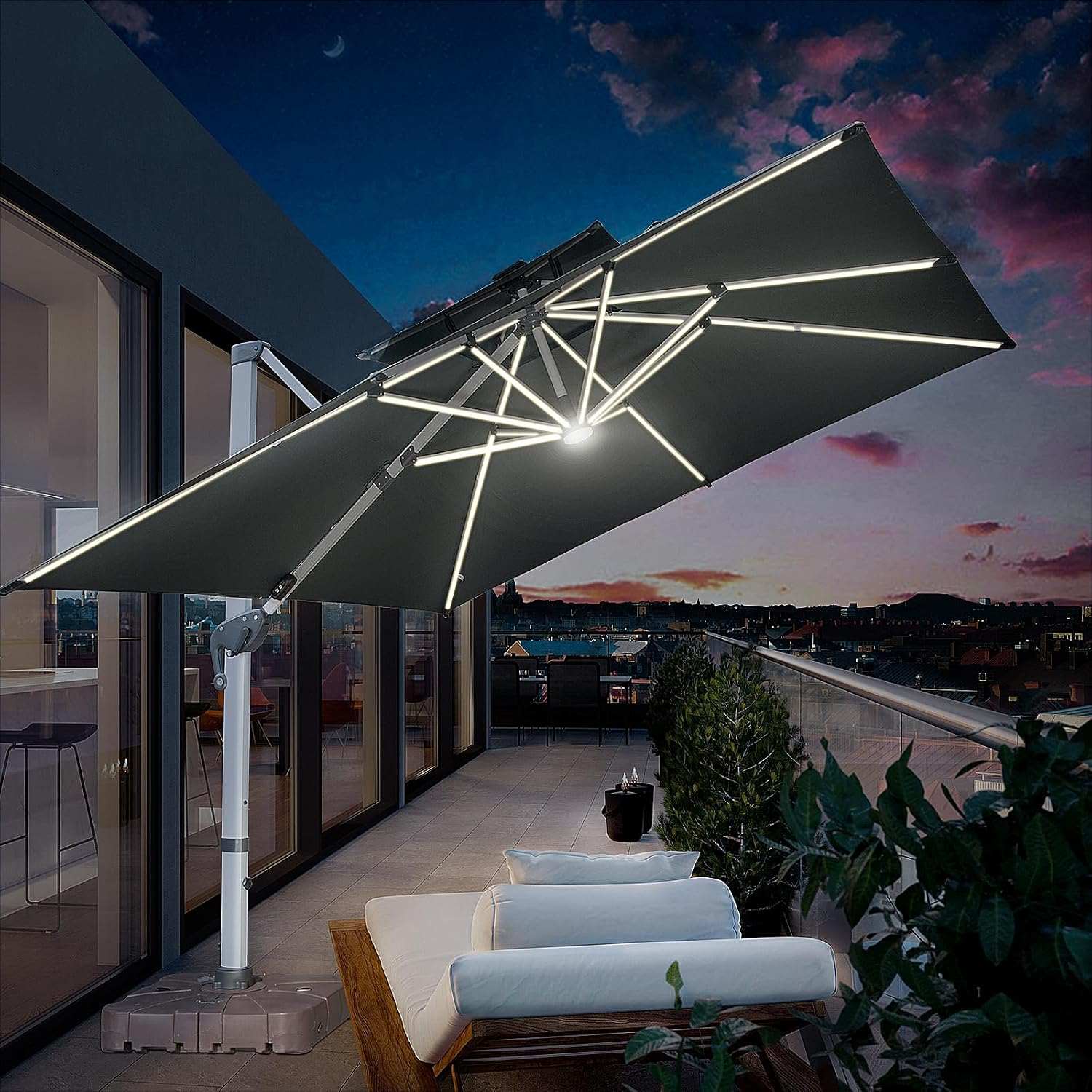

SOLAR LED LIGHTING

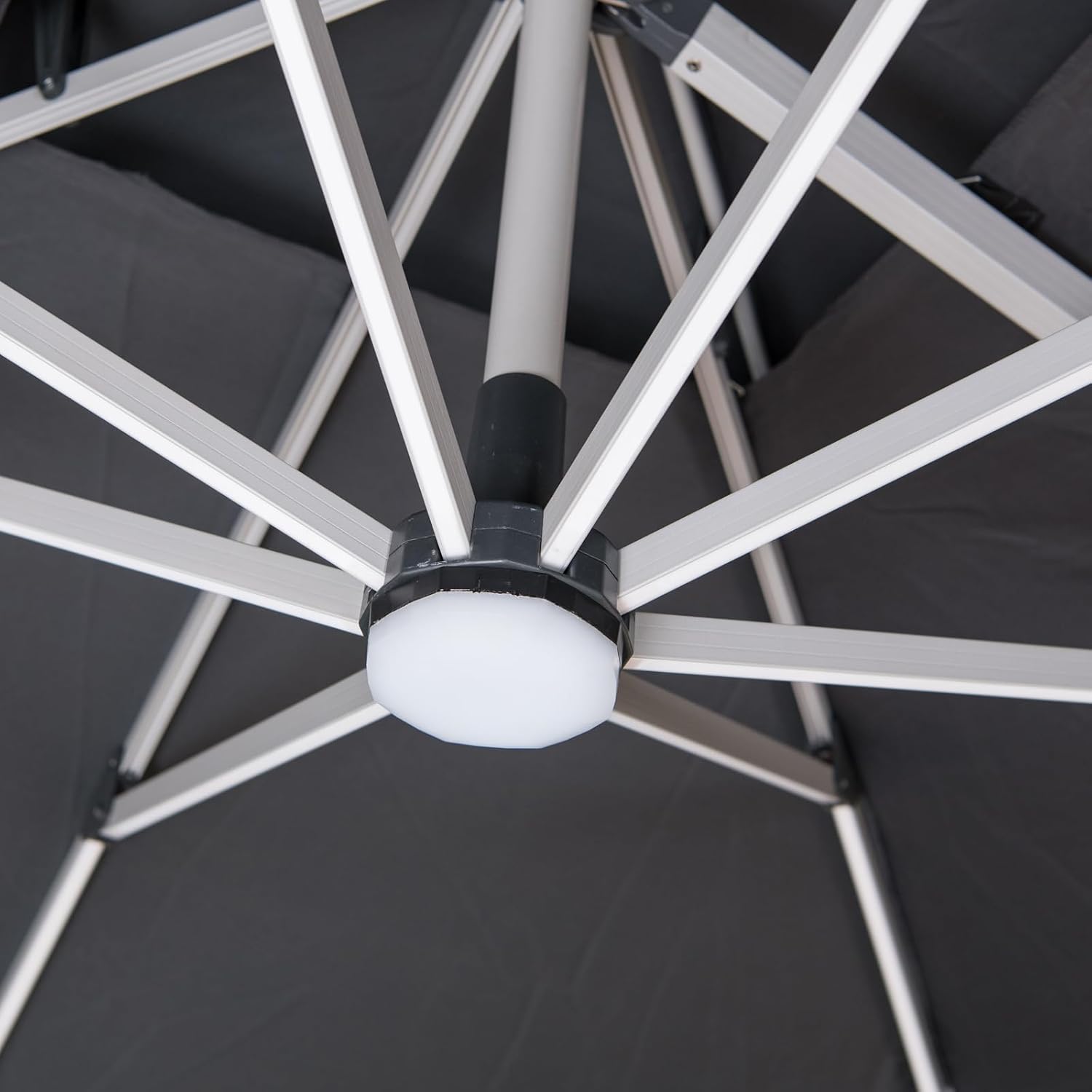

LED elements are integrated into the rib structure and a center hub light is shown on the reference model. Final LED count, battery chemistry and capacity, solar-panel output, runtime, replaceability and electrical compliance must be confirmed for the target market.

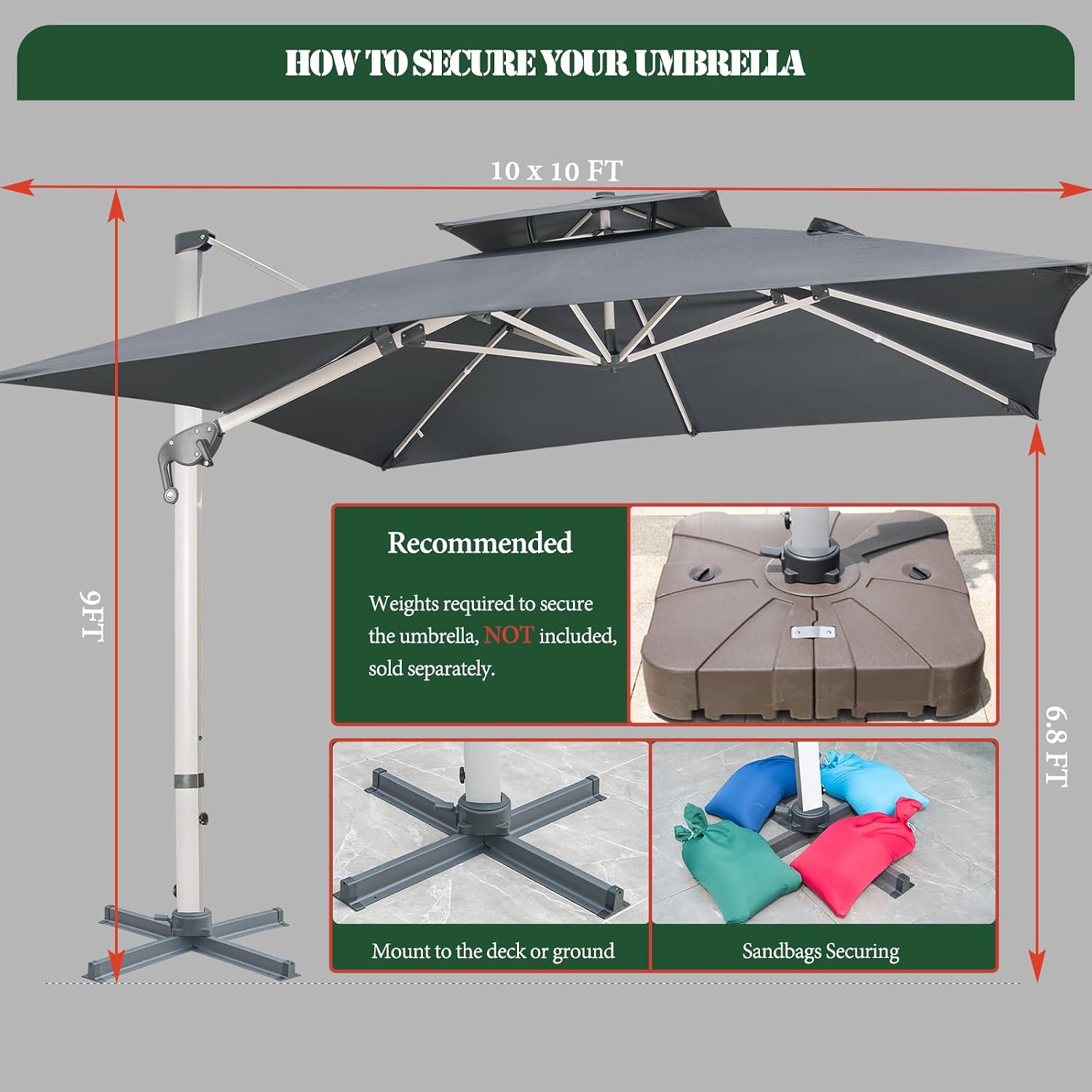

CROSS BASE AND BALLAST

The reference set includes a steel cross base but does not include weight slabs, sandbags or permanent anchors. The required ballast depends on surface, exposure and local conditions.

KEY FEATURES

Approx. 10 × 10FT / 305 × 305 cm square canopy

Offset mast keeps the shaded area open below

Four-level canopy tilt

360-degree rotation with foot-pedal release

Hand-crank and sliding-handle operation

Integrated solar LED lighting

Vented polyester reference canopy

Powder-coated steel cross base on reference model

Custom canopy, frame, lighting, cover, base and packaging options

CUSTOM DESIGN OPTIONS

Pantone-matched canopy colors and original prints

Panel, edge or valance logo placement where compatible

Alternative fabric weights, coatings and replaceable canopy options

Alternative frame color and surface treatment

Solar panel, battery, LED count and wiring specification

Protective cover and replacement component kits

Compatible ballast boxes, slabs or mounting hardware quoted separately

Branded instructions, labels and export packaging

RECOMMENDED APPLICATIONS

Outdoor furniture retailers

Restaurants, cafés and hotel terraces

Resorts, pools and lounge areas

Garden and home-improvement distributors

E-commerce private-label collections

Importers and wholesalers

WHOLESALE ORDERS

For an accurate quotation, provide quantity, canopy size and fabric, frame specification, tilt and rotation requirements, lighting specification, installation surface, ballast or mounting method, target electrical market, logo artwork, packaging and destination country.
