Custom 11ft Round Cantilever Patio Umbrella with 360° Rotation

An 11-foot cantilever umbrella is purchased for one clear reason: broad shade without a center pole interrupting the furniture below. The mast sits to the side, leaving the middle of a dining set, sectional sofa or poolside lounge area open and easier to arrange. This reference model pairs a round double-top canopy with a rotating aluminum structure. The operator can turn the shade around the mast as the sun moves, then adjust the canopy angle using the handle mechanism. For homeowners this improves daily usability; for hospitality buyers it reduces the need to drag a heavy base repeatedly across the terrace.

Model:VST-CPU335-03

Send Inquiry

Product Description

TECHNICAL PROFILE

Specification	Reference Value
Umbrella Type	Side-post / cantilever patio umbrella
Canopy Shape	Round, double-top vented design

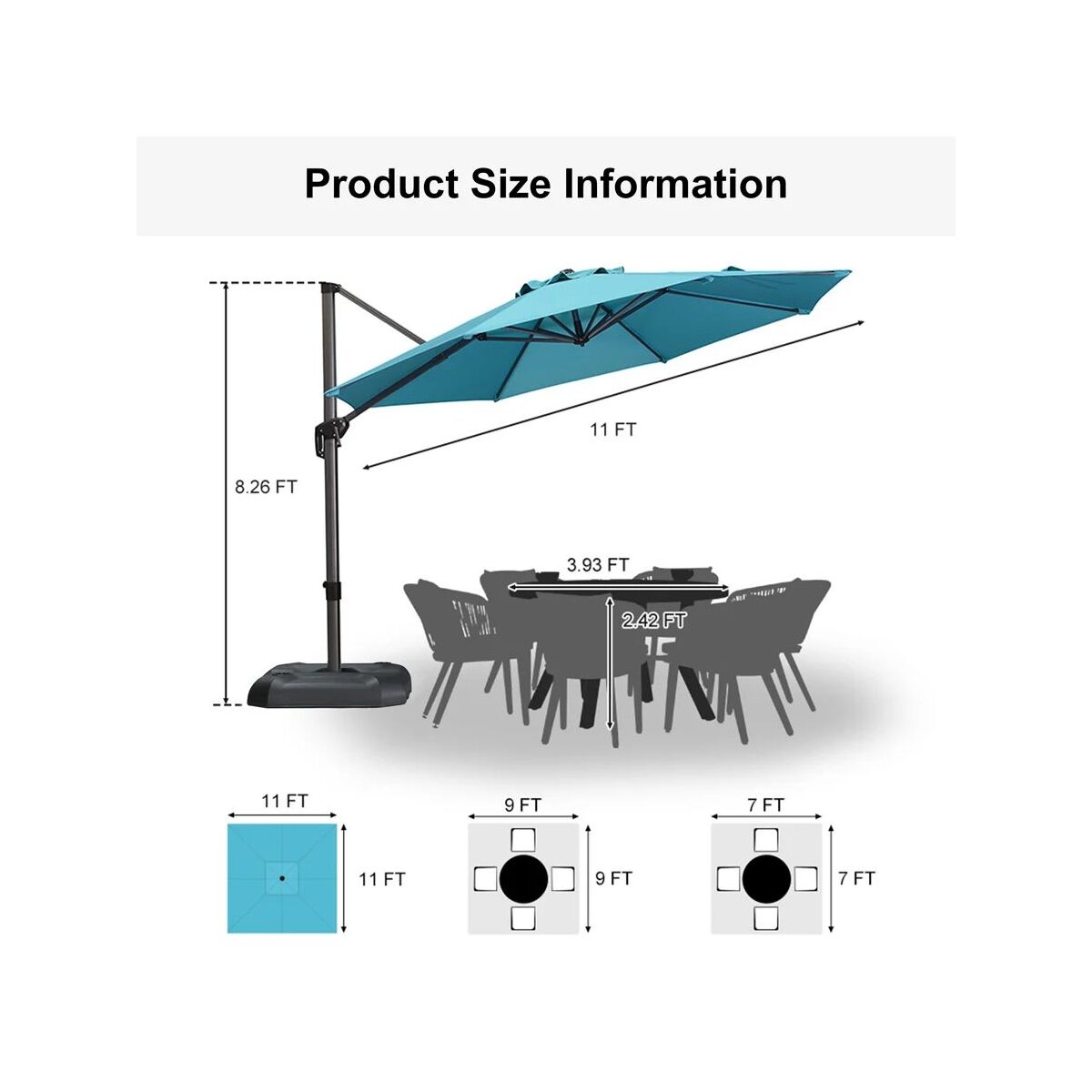

Canopy Diameter	11 ft / 335 cm
Overall Height	8.26 ft / 252 cm in reference position
Coverage	Suitable for dining or lounge groupings;
Fabric	240 gsm polyester reference canopy
Fabric Treatment	UV-resistant, water-repellent and colorfast options
Main Frame	Powder-coated aluminum
Ribs	8 heavy-duty aluminum ribs
Rotation	Foot-pedal or lever-assisted 360° rotation option
Tilt	Crank/handle system with six reference positions
Canopy Vent	Double-top airflow vent
Opening	Crank-assisted
Protective Cover	Optional or included according to order
Base	Not included in the reference configuration
Recommended Support	Compatible weighted, wheeled or in-ground base sized for 11 ft canopy
Color Development	Custom fabric and frame colors
Decoration	Valance or panel logo subject to artwork review
Reference MOQ	100pieces
Product Origin	China

OPERATION AND SHADE CONTROL

Rotate around the seating area

The 360-degree function allows coverage to move between adjacent positions. Rotation hardware should be locked before use, and the base must be chosen for the installed surface and local wind exposure.

Select from multiple canopy angles

Six reference height or tilt positions give users more control over morning and late-afternoon sun. The crank and sliding handle keep normal adjustments accessible from standing height.

Release warm air through the double top

The separated upper vent provides an exit path for rising air and helps relieve some pressure beneath the canopy. This feature improves comfort but does not remove the need to close the umbrella during strong or gusty wind.

CONSTRUCTION NOTES FOR BUYERS

The reference canopy uses 240 gsm polyester and the frame uses powder-coated aluminum with eight reinforcing ribs. Material weight alone does not define service life. Buyers should also confirm colorfastness, UV exposure, seam reinforcement, rib-wall thickness, coating adhesion and the operating-cycle requirement for the crank and rotation mechanisms.

The photographed base is a styling reference and is not included unless written into the quotation. An 11-foot offset canopy creates substantial leverage, so a correctly matched weighted or in-ground base is an essential part of the installation.

CORE ADVANTAGES

Approx. 335 cm round canopy creates generous outdoor coverage

Offset mast keeps tables and lounge furniture unobstructed

Full 360° rotation follows changing sun direction

Multi-position tilt improves low-angle shade

Double-top vent supports airflow

Eight-rib aluminum structure balances reach and rigidity

Crank operation is practical for daily opening and closing

Suitable for residential and light-commercial collections

CUSTOM BUILD MENU

Buyers can select canopy color, edge binding, frame powder-coat tone, hardware finish and protective cover. The model can also be configured with alternative fabric grades, solution-dyed material, replaceable canopy construction, different base systems, retail labels and shipping cartons.

Logo placement is normally considered on a single lower panel, canopy edge or protective cover. Artwork size must be reviewed so it does not interfere with seams, ribs or vent movement. For hospitality programs, numbered inventory labels and replacement-canopy ordering can be added.

RECOMMENDED MARKETS

Patio and garden furniture retailers

Pool and spa distributors

Hotels, cafés and resort operators

Landscape contractors

Outdoor-living e-commerce brands

Residential developers and project suppliers

BEFORE REQUESTING A QUOTE

Please state quantity, canopy diameter, fabric and UV requirement, frame color, intended wind environment, preferred base type, logo position, spare-parts requirement, packaging standard and destination.
