Custom 2 × 2m Wall-Mounted Square Patio Parasol with Crank

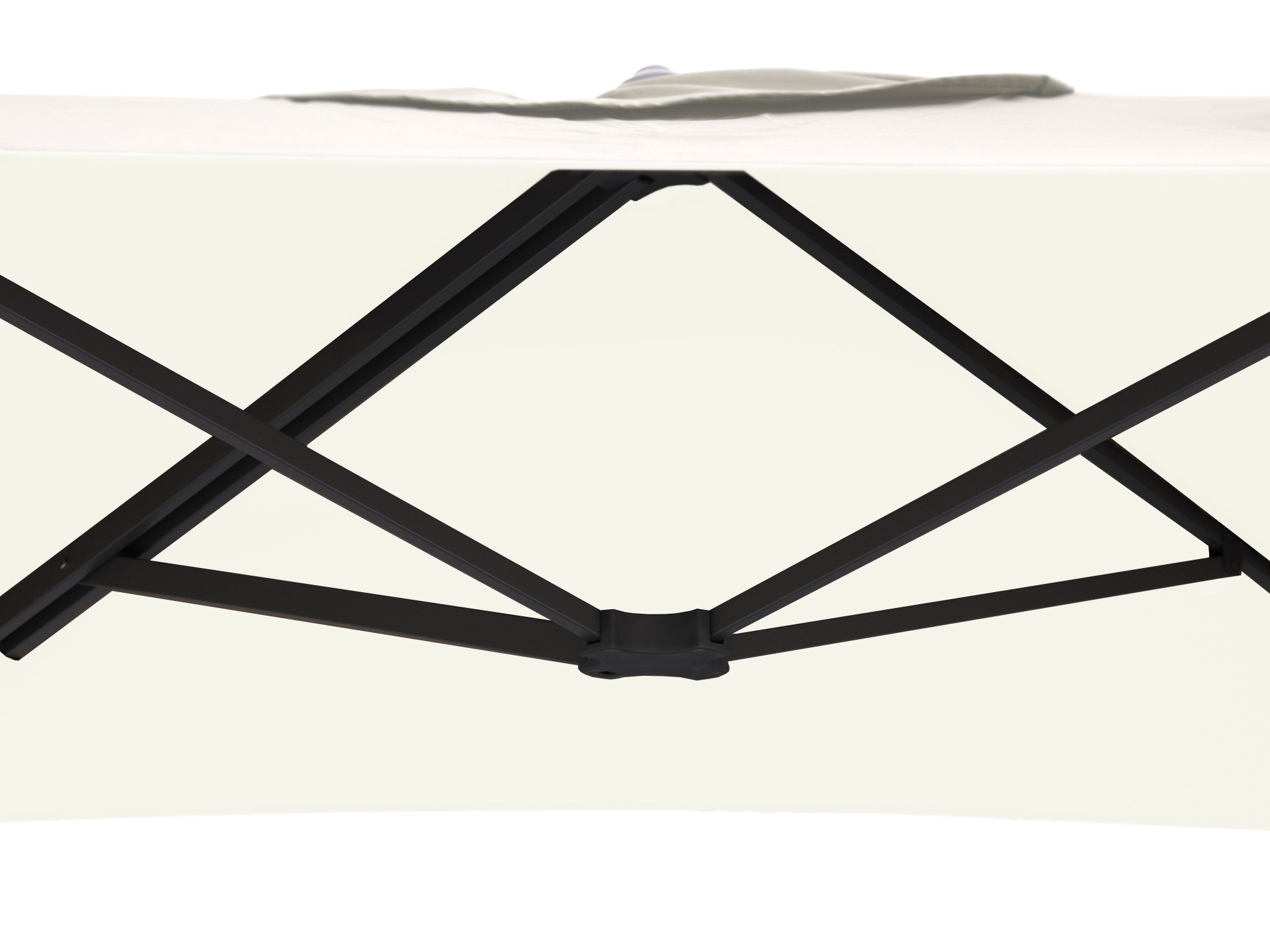

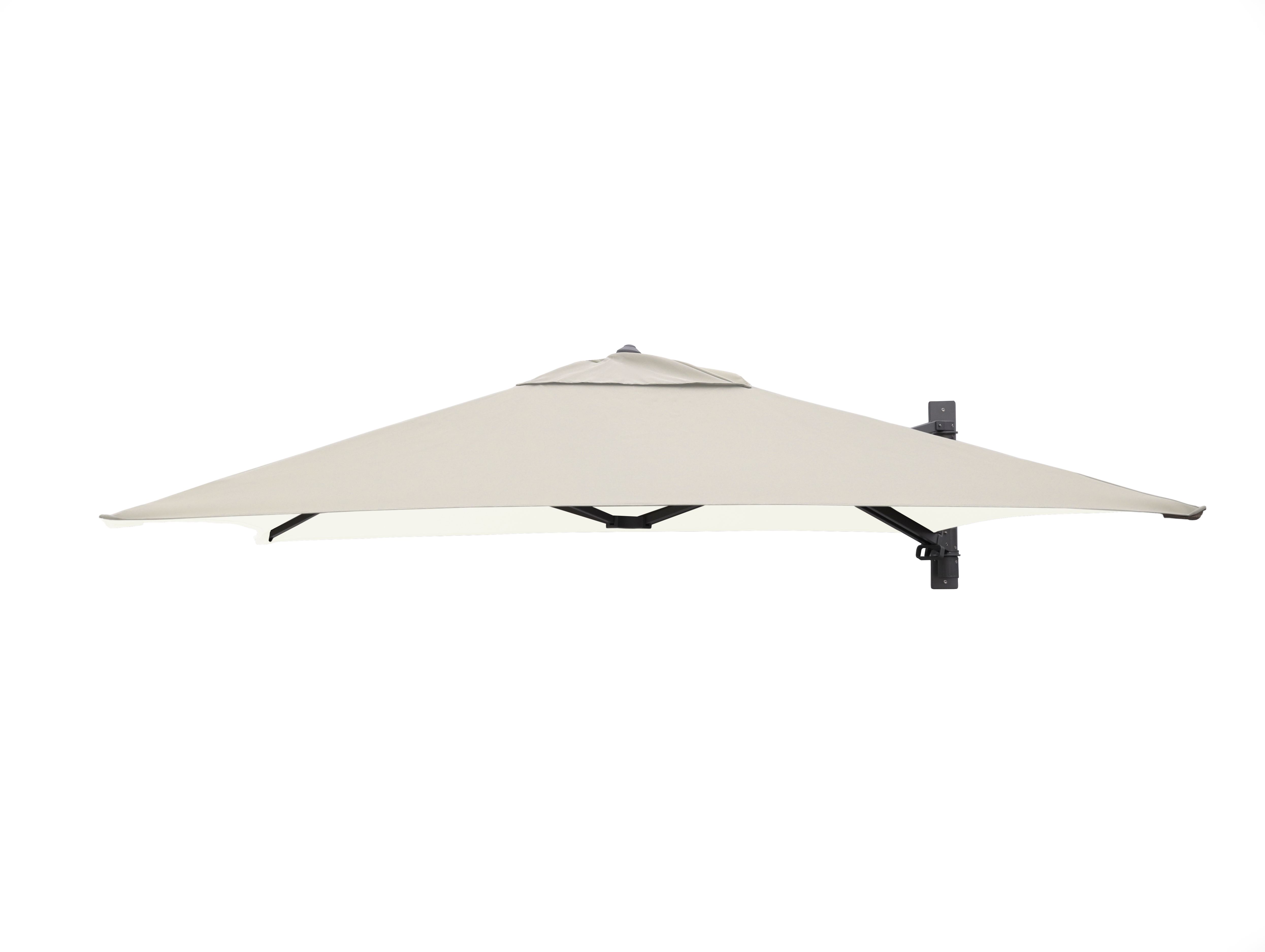

Made for balconies and compact terraces, this 2 × 2 m square parasol fixes to a wall instead of occupying floor space with a center pole and weighted base. The aluminium arm supports the canopy away from the mounting surface, while a crank opens the frame.
The reference design can swing horizontally from the lower control point and includes a fitted protective cover.
Model:VST-PWM200-SQ
Send Inquiry
Product Description
PRODUCT PARAMETERS
| Parameter | Details |
|---|---|
| Product Type | Wall-Mounted Square Cantilever Parasol |
| Canopy Size | 200 × 200 cm |

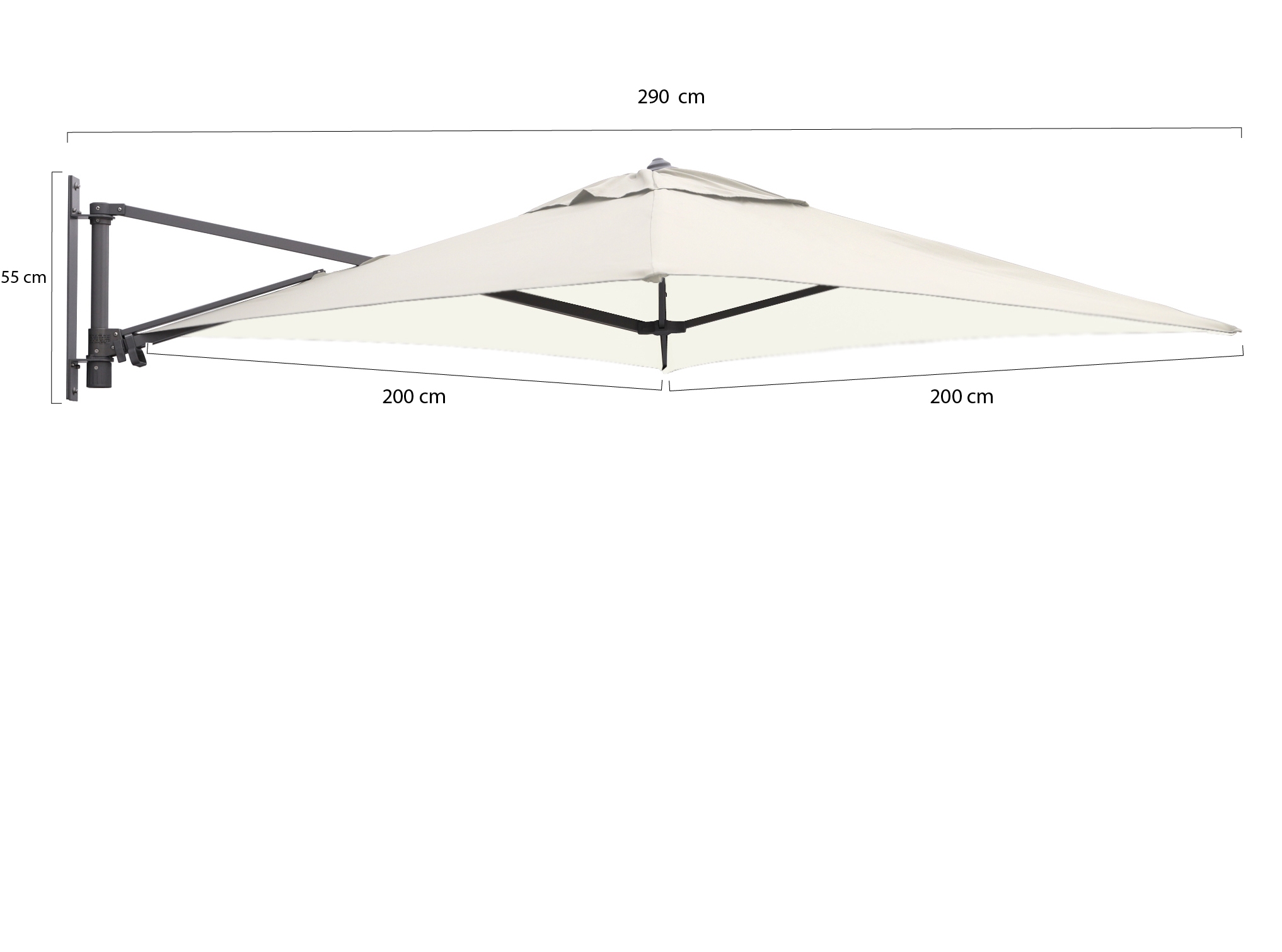

| Overall Horizontal Projection | 290 cm Shown in Reference Diagram |
| Canopy Drop | 55 cm Shown in Reference Diagram |
| Frame Material | Aluminium |
| Reference Color | Ecru Canopy with Dark Frame |
| Opening Mechanism | Crank Handle |
| Adjustment | Horizontal Left-to-Right Rotation via Lower Knob |
| Reference Weight | 7.8 kg, Excluding Cover |
| Seating Guidance | Shade for 3–4 Seats, Depending on Sun Position |
| Protective Cover | Included on the Reference Retail Model |
| Wall Fixings | Type and Inclusion Must Be Confirmed for Each Wall Substrate |
| Reference MOQ | 50 Sets |
| Canopy Fabric | Fiber Content and Coating to Be Confirmed for Production |
| UV / Water Performance | Subject to Production Fabric Test |
| Customization | Canopy Color, Fabric, Frame Finish, Labels, Cover and Carton |
SPACE-PLANNING NOTES
Allow for the full arm projection, canopy width and rotation path before drilling. The reference diagram shows approximately 290 cm overall projection and 55 cm canopy drop, but installers should use the approved technical drawing.
The 200 × 200 cm canopy is intended for a small seating arrangement rather than a large dining zone. Shade position changes during the day, so the wall orientation and swing range should be considered before selecting the mounting point.

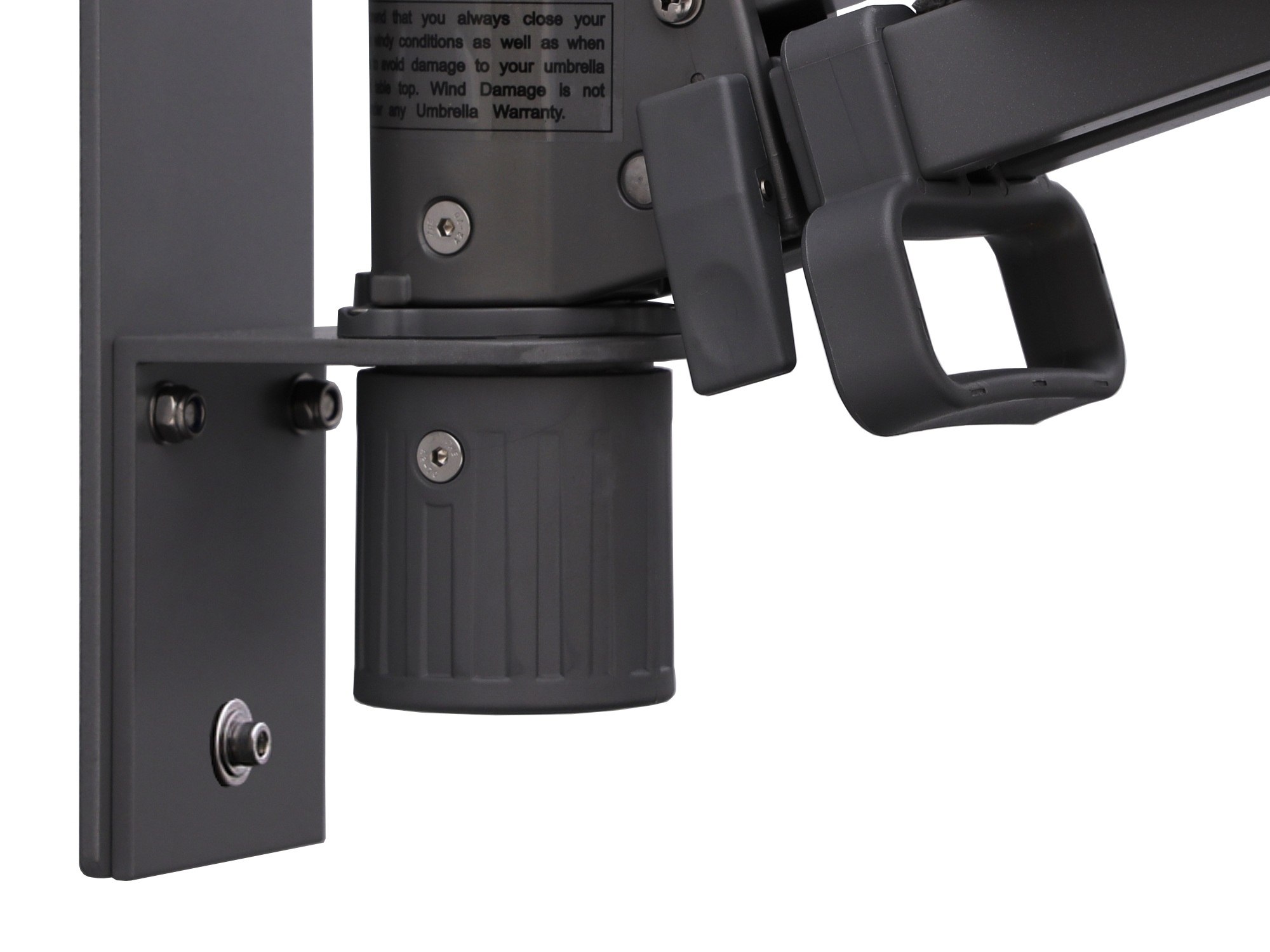

WALL AND FIXING REQUIREMENTS
Concrete, masonry, timber framing and insulated façades require different anchors. Wall bolts should be selected by a qualified installer for the actual substrate and expected loads.

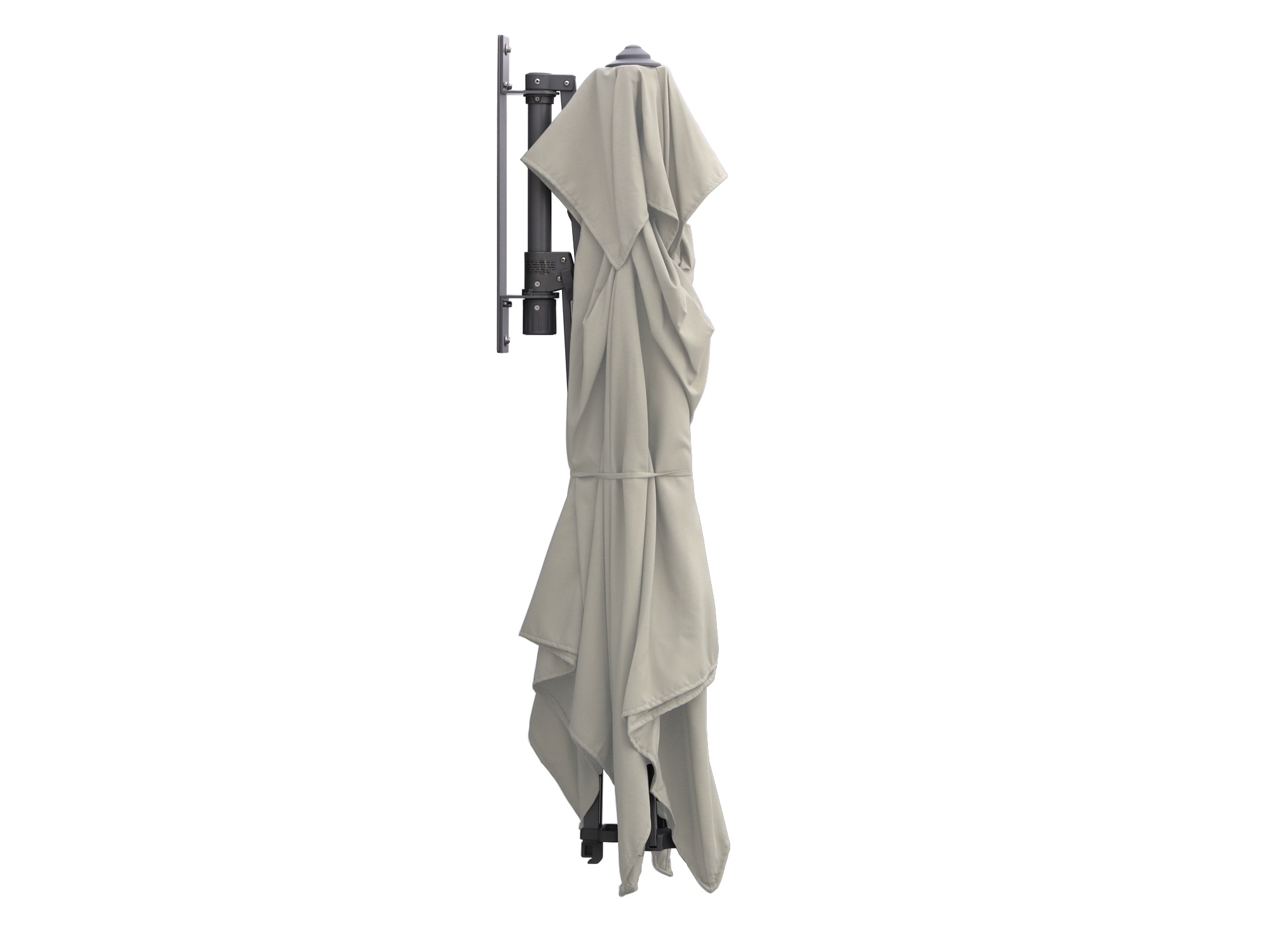

The package specification must state whether bolts are included. If fixings are supplied, their compatible wall types and installation torque should be documented. A wall-mounted parasol should be closed whenever it is unattended or wind conditions increase.
PRODUCT CONFIGURATION FOR WHOLESALE
Buyers can specify canopy color, fabric weight, coating, frame color, protective-cover fabric, care label and export carton. A project order should also define bracket-hole spacing, fastener specification, crank position and replacement-canopy availability. Custom colors require a lab dip or fabric swatch before sample production.
INQUIRY CHECKLIST
Order quantity and destination
Wall type and intended installation height
Required canopy color and fabric specification
Frame finish and corrosion-test requirement
Bracket drawing and fixing-kit requirement
Protective cover and replacement parts
Carton dimensions, labels and installation manual
Required UV, water-repellency and color-fastness tests
