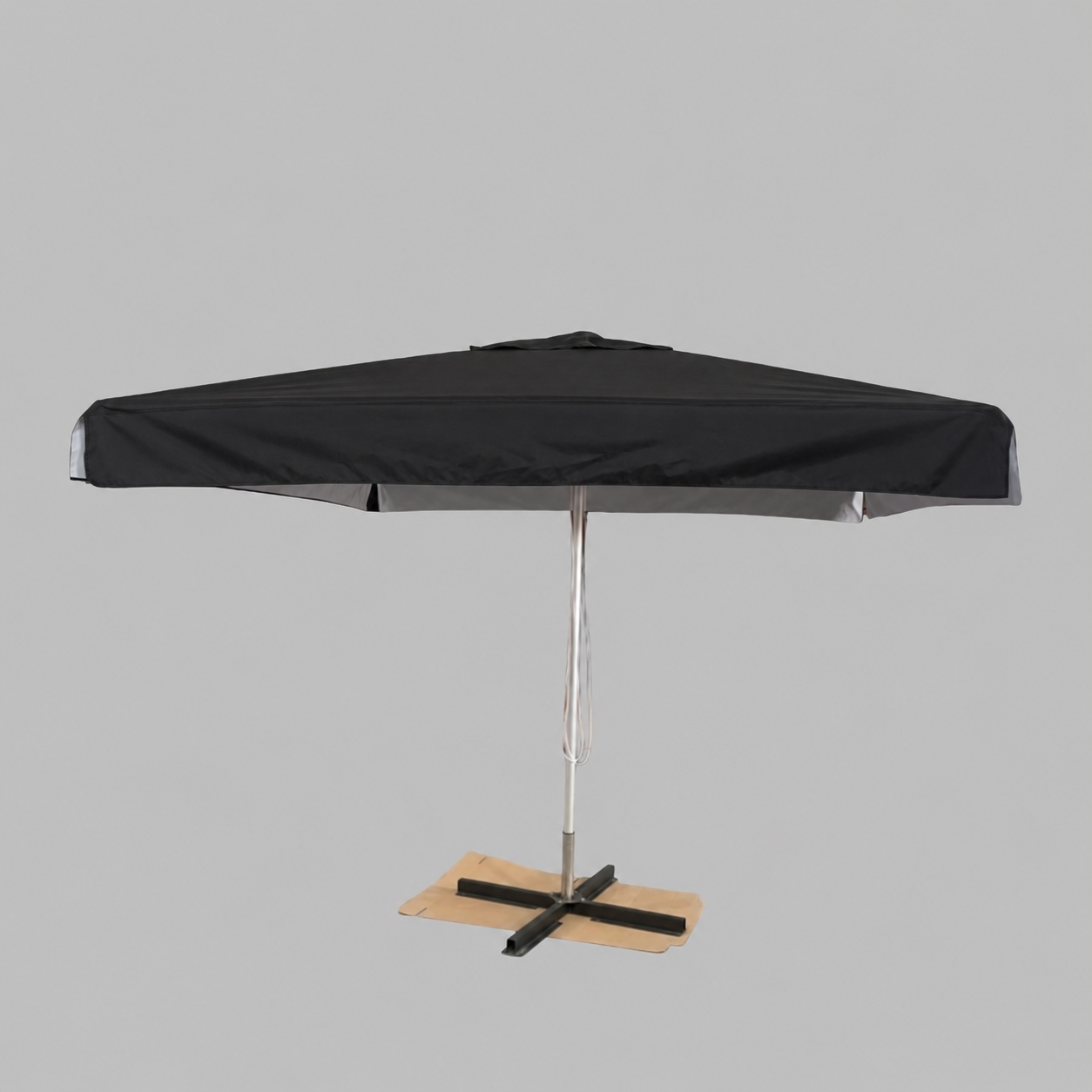

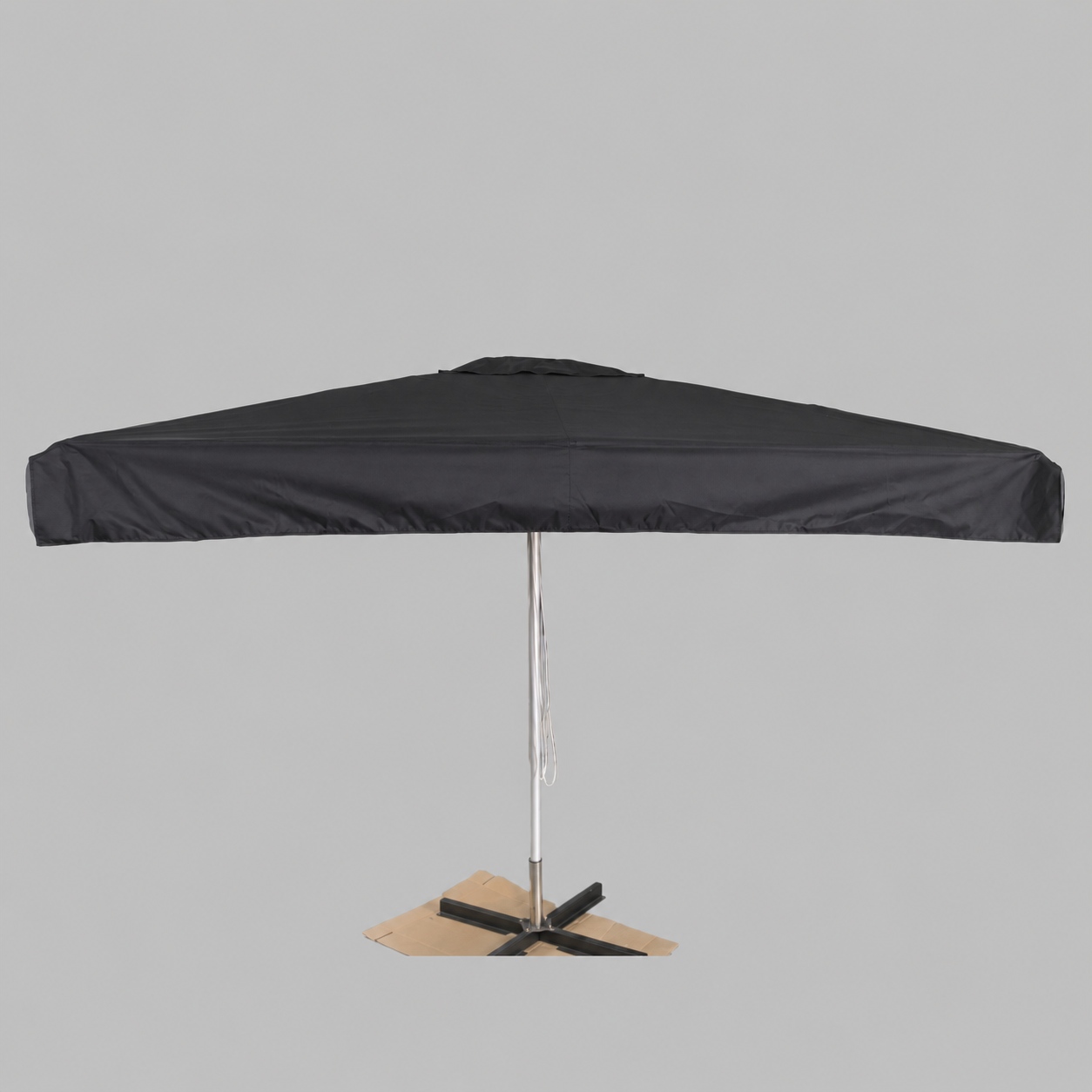

Custom 3×3m Square Advertising Patio Umbrella with 48mm Aluminium Pole

The VESTA 3×3m square advertising patio umbrella is intended for hospitality terraces, promotional events and branded outdoor seating. The reference configuration uses an aluminium frame, an approximately 48mm centre pole and a rope-and-pulley opening system. The four equal canopy panels and optional valance provide practical print areas for logos and original campaign artwork. A 3.5×3.5m version may also be developed, but pole, rib, fabric and base specifications must be reconfirmed for the larger span.

Model:VST-RXC007-33

Send Inquiry

Product Description

PRODUCT PARAMETERS

Parameter	Details
Product Type	Square Commercial / Advertising Centre-Pole Umbrella

Standard Size	3 × 3 m
Optional Size	3.5 × 3.5 m
Canopy Shape	Square
Reference Canopy	Polyester; fabric weight, coating and colorfastness to be confirmed
Frame Material	Aluminium
Centre Pole	Ø48 mm
Reference Rib Section	15 × 30 mm on the supplied reference; final section to be confirmed
Number of Ribs	8 on the compared 3 × 3 m models
Opening System	Rope-and-pulley reference system; crank option subject to configuration
Air Vent	Available;
Valance	Optional straight or shaped valance
Base	Cross base, plate base, concrete or stone base quoted separately
Printing	Screen printing, heat-transfer or dye-sublimation subject to fabric and artwork
Reference MOQ	50 Pieces – confirm after size, fabric and printing selection
Water Resistance	Subject to selected fabric, coating, seams and finished-product test
UV Performance	Subject to selected fabric and production test report
Customization	Size, fabric, Pantone color, print, valance, frame finish, base and packaging
Product Origin	China

PRODUCT DETAILS

COMMERCIAL SQUARE SHADE FORMAT

The 3×3m square footprint is suited to café tables, resort seating, dealer displays and promotional activations. The central mast keeps the frame symmetrical, while the vented top option allows warm air to escape from beneath the canopy.

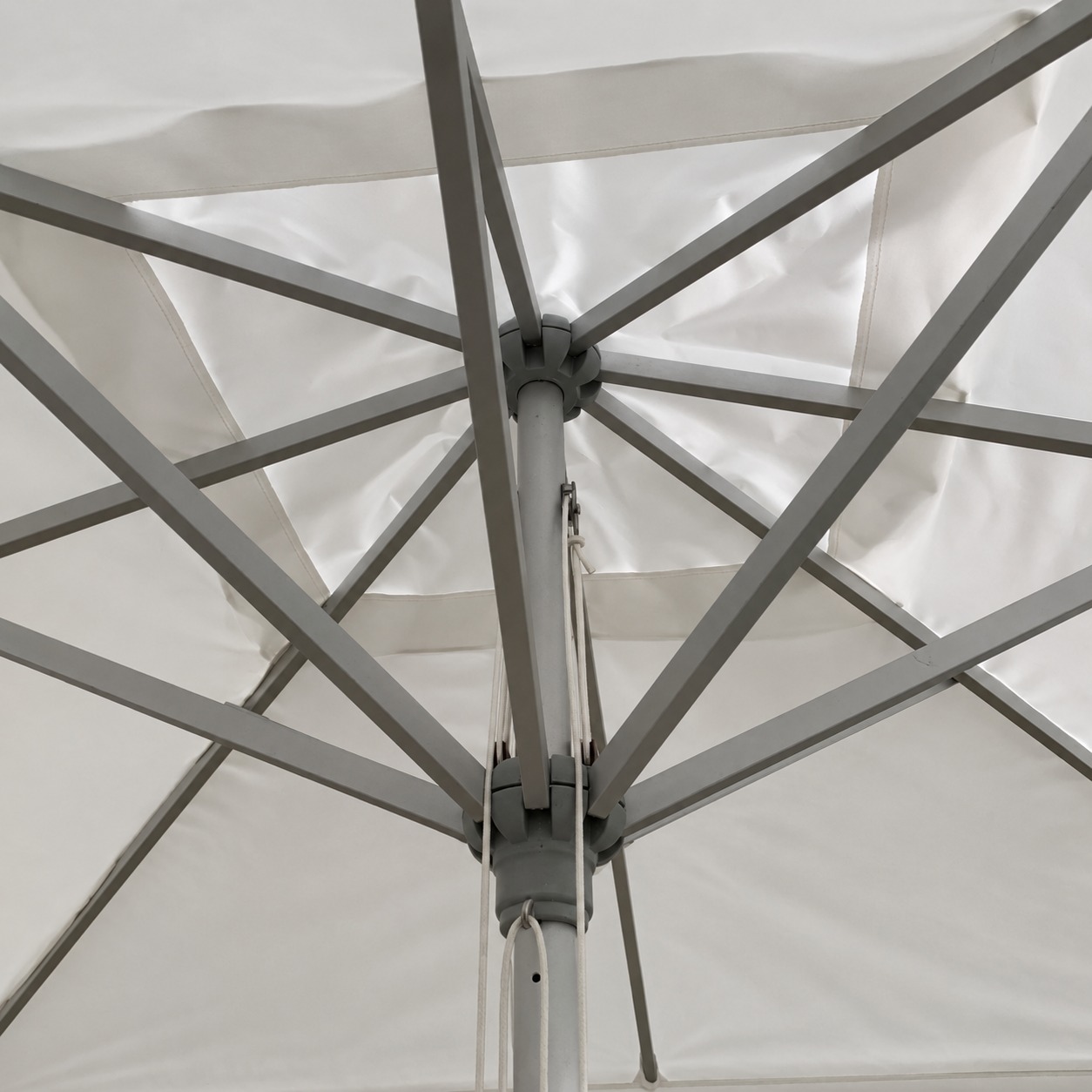

48MM ALUMINIUM CENTRE POLE

The supplied reference shows a 48mm aluminium mast and rectangular aluminium rib system. Final alloy grade, tube wall thickness, connector material and surface finish should be agreed during sampling because these details affect weight, cost and service life.

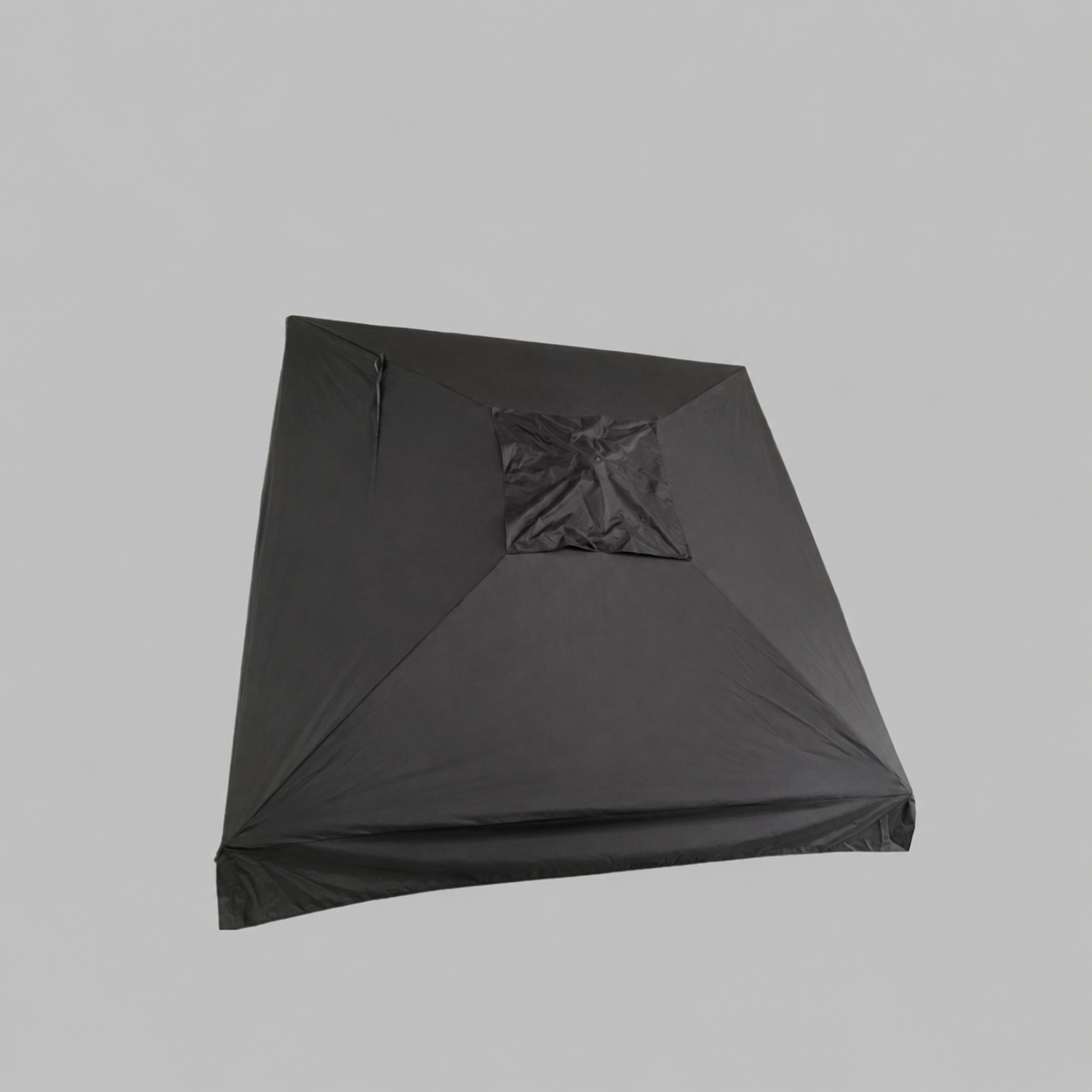

PRINTABLE CANOPY AND VALANCE

Buyers may specify solid colors, alternating panels or original full-color artwork. Logo placement can be limited to the valance or repeated across selected roof panels. Print method, color tolerance and artwork scale depend on the selected fabric.

KEY FEATURES

Approx. 3×3m square commercial canopy
Optional 3.5×3.5m size subject to frame confirmation
Approx. Ø48mm aluminium centre pole
Approx. 15×30mm reference ribs
Rope-and-pulley opening system
Optional vented top and printable valance
Large roof-panel and valance branding areas
Alternative frame colors and anchoring solutions
Replacement canopy and spare-hardware programs available by quotation

CUSTOM DESIGN OPTIONS

Custom Pantone canopy colors
Original logos and licensed artwork
Panel-by-panel or full-canopy printing
Straight, scalloped or no-valance construction
Polyester, spun-acrylic, acrylic or olefin fabric options
Anodized, white or custom powder-coated frame finish
Cross base, steel plate, concrete or stone base
Protective cover, storage bag and spare parts
Barcode labels, instructions, cartons and private-label packaging

RECOMMENDED APPLICATIONS

Cafés, restaurants and hotel terraces
Beverage and promotional campaigns
Resorts, clubs and outdoor events
Garden centres and outdoor-furniture retailers
Distributors, wholesalers and private-label brands

WHOLESALE ORDERS

For an accurate quotation, please provide order quantity, target size, canopy fabric, required colorfastness or test standard, artwork file, print positions, frame color, opening system, base type, packaging and destination country.
