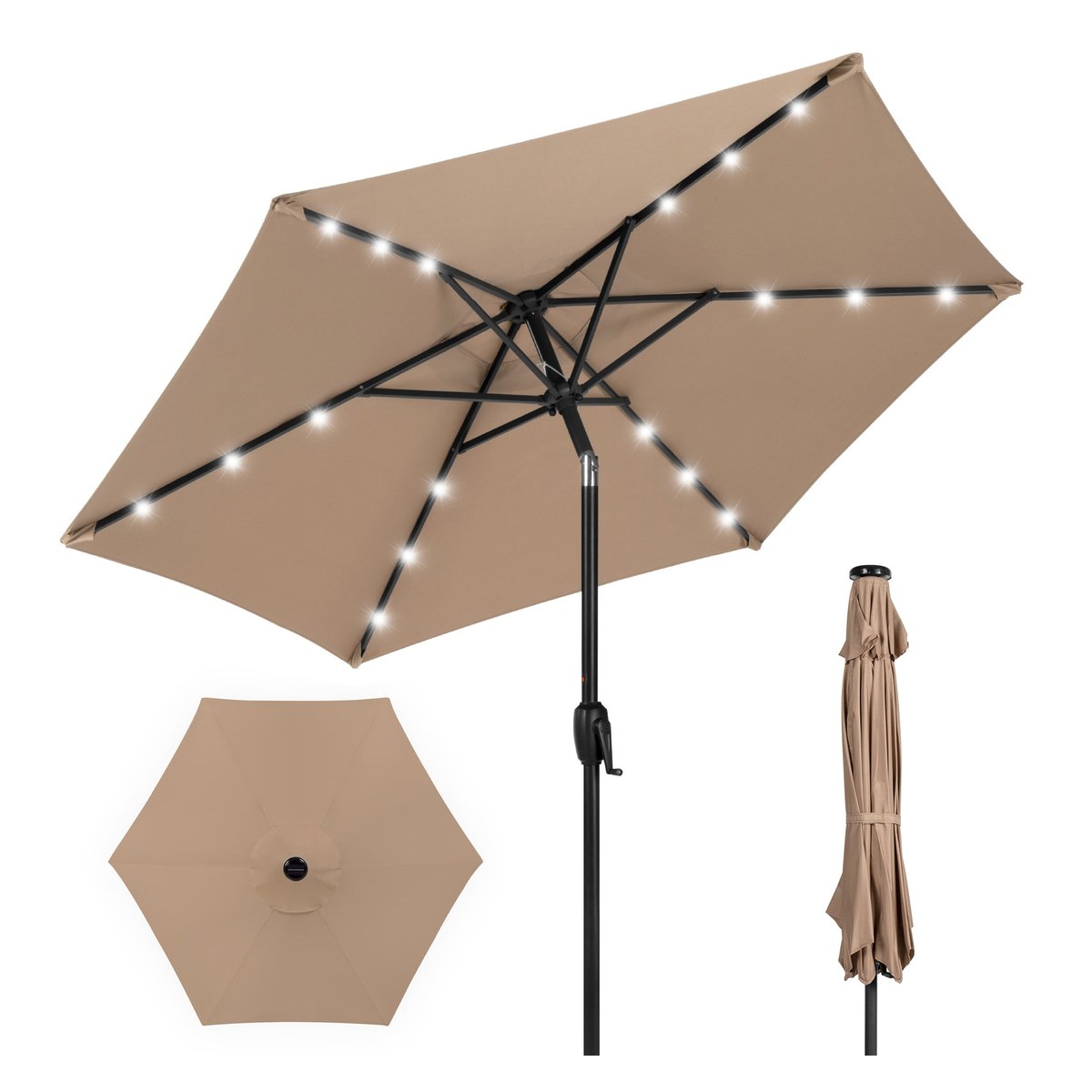

Custom 7.5 ft Solar LED Patio Umbrella with Crank Lift and Push-Button Tilt

Sized for café tables, compact decks and small garden seating groups, this 7.5-foot market umbrella adds low-output ambient lighting without a mains cable. A solar panel at the finial charges during daylight, and eighteen LEDs positioned along the ribs illuminate the area after sunset. Daily operation is straightforward: the crank opens the canopy, while a push button changes the tilt angle when the sun moves lower. The vented top gives warm air an exit path and reduces pressure below the canopy in light breezes.

Model:VST-PSU75-18L

Send Inquiry

Product Description

PRODUCT PARAMETERS

Specification	Reference Value
Product Type	Center-Pole Solar LED Market Umbrella

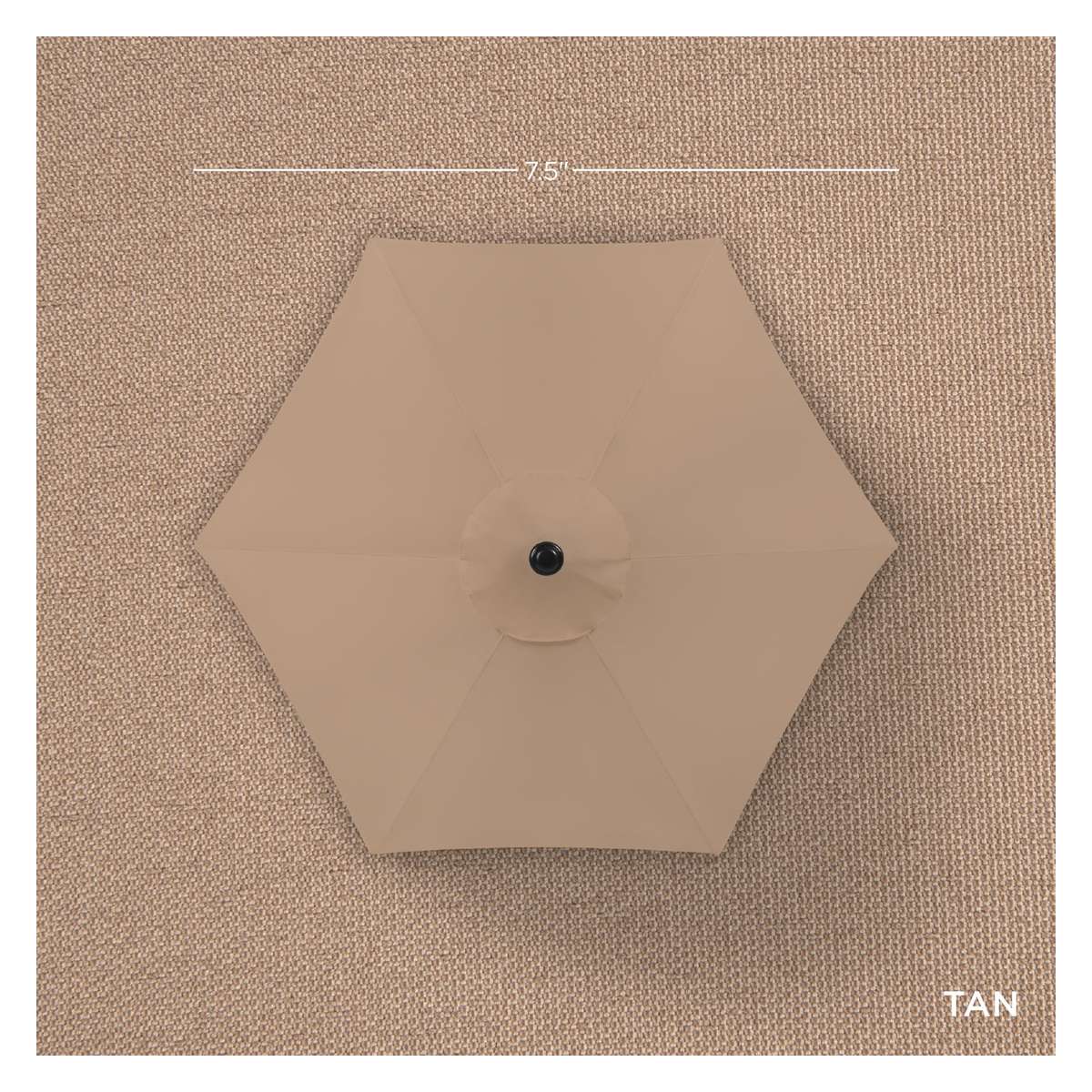

Canopy Diameter	90 in / 7.5 ft / approx. 229 cm
Overall Height	88.75 in / 225 cm
Pole Diameter	1.5 in / 38 mm
Frame	Steel Pole with 6 Steel Ribs
Canopy Material	Polyester
Opening	Hand Crank Lift
Tilt	Push-Button Tilt
Ventilation	Single Top Wind Vent
Lighting	18 Pre-Strung LED Lights
Power	Top-Mounted Solar Panel and Rechargeable Battery System
Reference Light Duration	Up to 6 hours after suitable charging conditions
Reference Weight	9 lb / 4.1 kg
Base	Not included; specify table or freestanding base separately
Assembly	Tool-Free Main Assembly on reference version
Reference MOQ	50 pcs
Origin	China

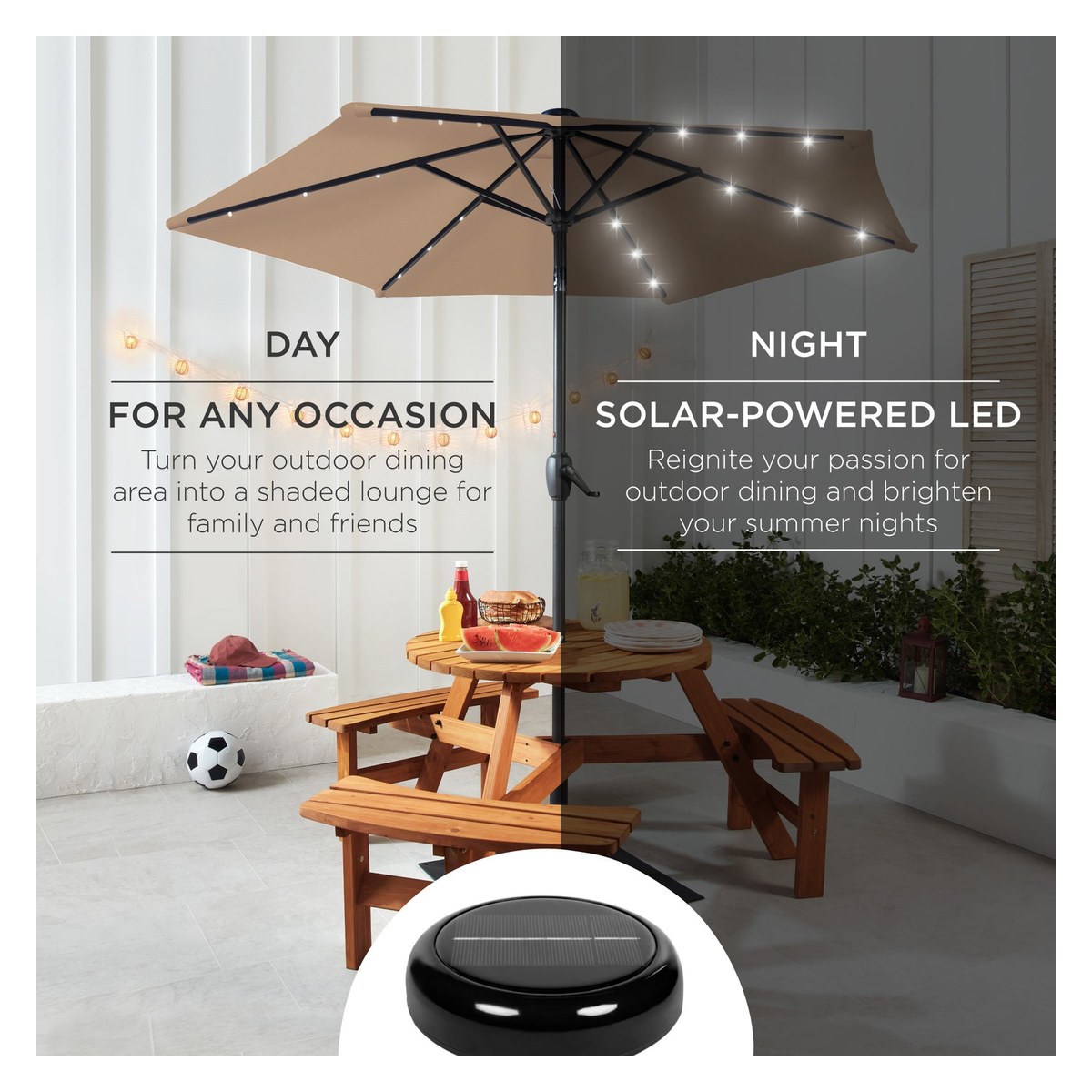

DAYTIME SHADE, EVENING LIGHT

This product earns its shelf space by doing two jobs. During the day it provides a conventional round shade footprint; after dark the rib lights make a dining or conversation area easier to use. The lighting is decorative rather than a replacement for task lighting.

Solar runtime depends on direct-sun exposure, season, panel cleanliness, battery condition and ambient temperature. “Up to six hours” should remain a reference statement until the final electrical set is tested.

HARDWARE OVERVIEW

Six steel ribs support the polyester canopy. The 1.5-inch center pole is compatible with many patio tables and weighted bases, but the actual socket diameter must be checked before purchase. The crank should be kept within comfortable reach, and the tilt joint must be locked before the umbrella is left open.

RETAIL-FRIENDLY SELLING POINTS

90-inch round canopy for smaller outdoor settings

Eighteen integrated rib LEDs

No extension cord required for the reference solar system

Crank lift is easier to operate than a push-up runner

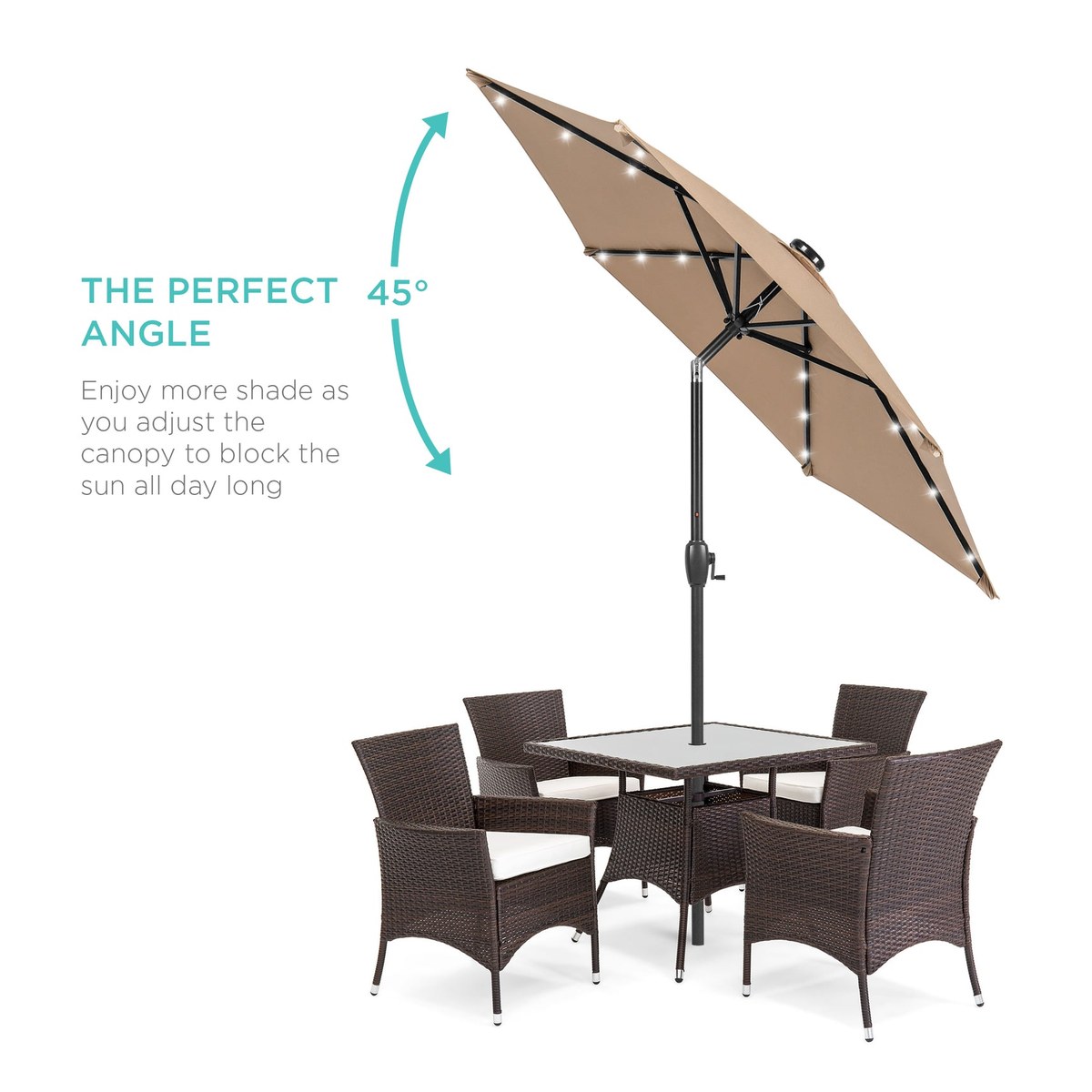

Push-button tilt adjusts afternoon coverage

Top vent supports airflow

Broad color range can be developed for seasonal assortments

Tool-free primary assembly suits e-commerce delivery

COLOR AND BRAND DEVELOPMENT

Possible production choices include solid or striped canopy fabrics, contrast valances, custom Pantone colors, logo printing, alternative LED color temperature, replaceable battery packs, upgraded solar panels, powder-coated frame colors, matching protective covers and printed cartons.

Electrical components, battery chemistry and market-specific labeling must be agreed before sampling. If the product is sold in multiple countries, the buyer should state the required battery transport documentation and consumer-language instructions.

PLACEMENT AND BASE SELECTION

The umbrella may be used through a compatible table or in a suitable freestanding base. Base weight depends on exposure, surface and whether the pole passes through a table. A base is not included in the reference specification. Close the canopy whenever it is unattended and do not rely on a light base in exposed locations.

PROCUREMENT DETAILS

For pricing, provide order volume, target fabric weight, canopy color, UV requirement, frame finish, LED color, battery specification, logo artwork, protective-cover option, carton requirement and destination. Reference MOQ is 50 pieces; custom fabric dyeing or certified electrical changes may increase the minimum.
