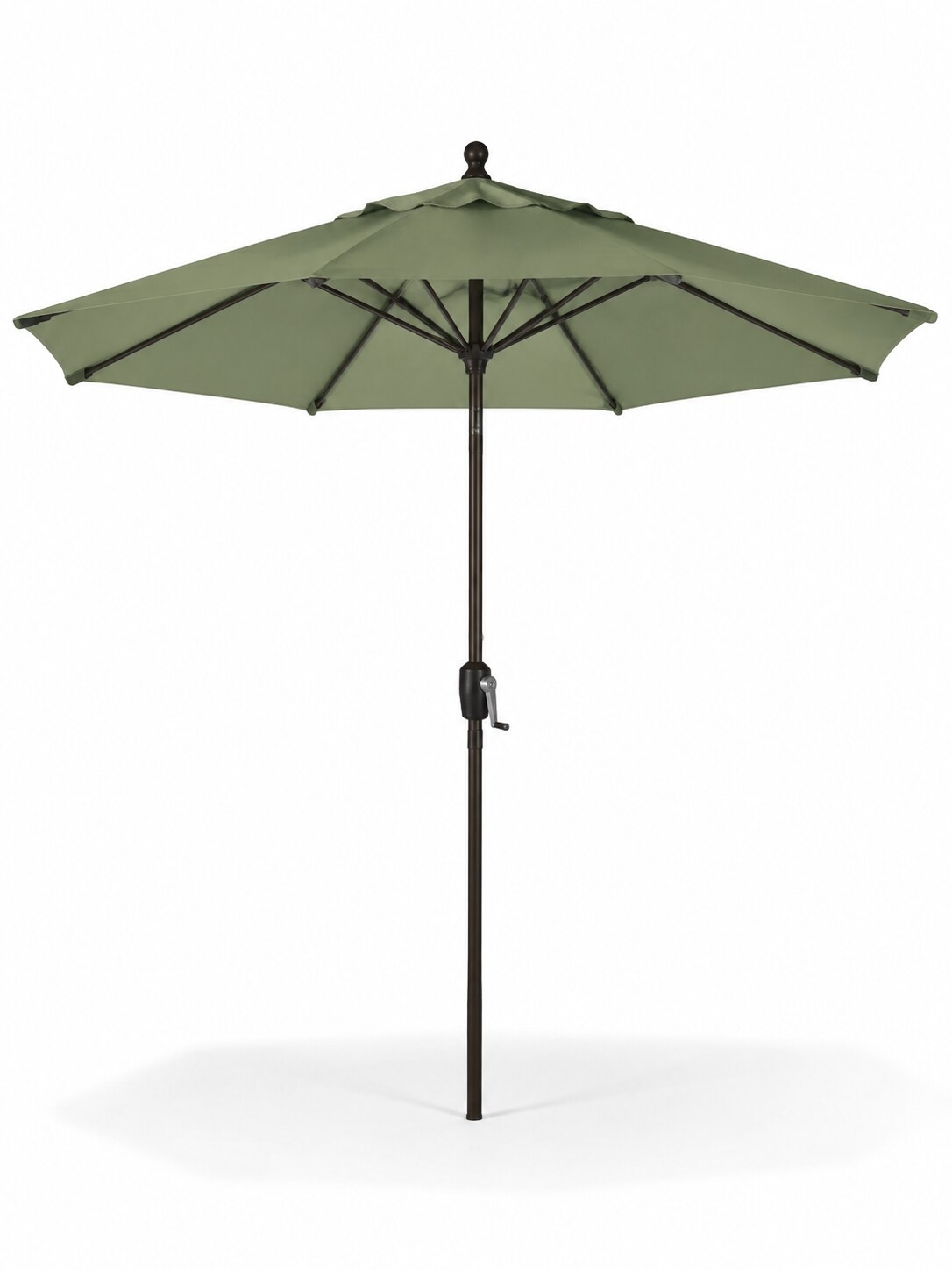

Custom 9 ft Crank-and-Tilt Market Patio Umbrella

The VESTA 9 ft market patio umbrella provides center-pole shade for outdoor dining tables, café terraces, pool areas and garden seating. Its crank mechanism opens and closes the canopy, while the push-button joint allows the canopy to tilt as the sun angle changes. The reference structure uses eight ribs and a vented octagonal canopy. Buyers can specify canopy fabric, frame material, pole color, printed branding and commercial packaging for wholesale programs.

Model:VST-PUM274-03

Send Inquiry

Product Description

The reference structure uses eight ribs and a vented octagonal canopy. Buyers can specify canopy fabric, frame material, pole color, printed branding and commercial packaging for wholesale programs.

PRODUCT PARAMETERS

Parameter	Details
Product Type	Center-Pole Market Patio Umbrella
Reference Canopy Diameter	274 cm / 9 ft
Canopy Shape	Octagonal
Reference Coverage	57 sq. ft.
Reference Height	260 cm / 102.5 in
Canopy	Outdoor Polyester Reference Option
Vent	Single Top Wind Vent on Reference Design
Ribs	8 Pieces
Pole	Powder-Coated Aluminum or Steel Options
Reference Lower Pole Diameter	38 mm / 1.5 in
Lift	Manual Crank Lift
Tilt	Push-Button Tilt
Recommended Table Range	107–137 cm / 42–54 in, Depending on Layout
Base	Not Included; Select by Site and Stability Requirement
Reference MOQ	100 Pieces — Confirm by Fabric and Frame Finish


Customization	Fabric, Color, Logo, Valance, Pole Finish, Vent and Packaging
Product Origin	China

PRODUCT DETAILS

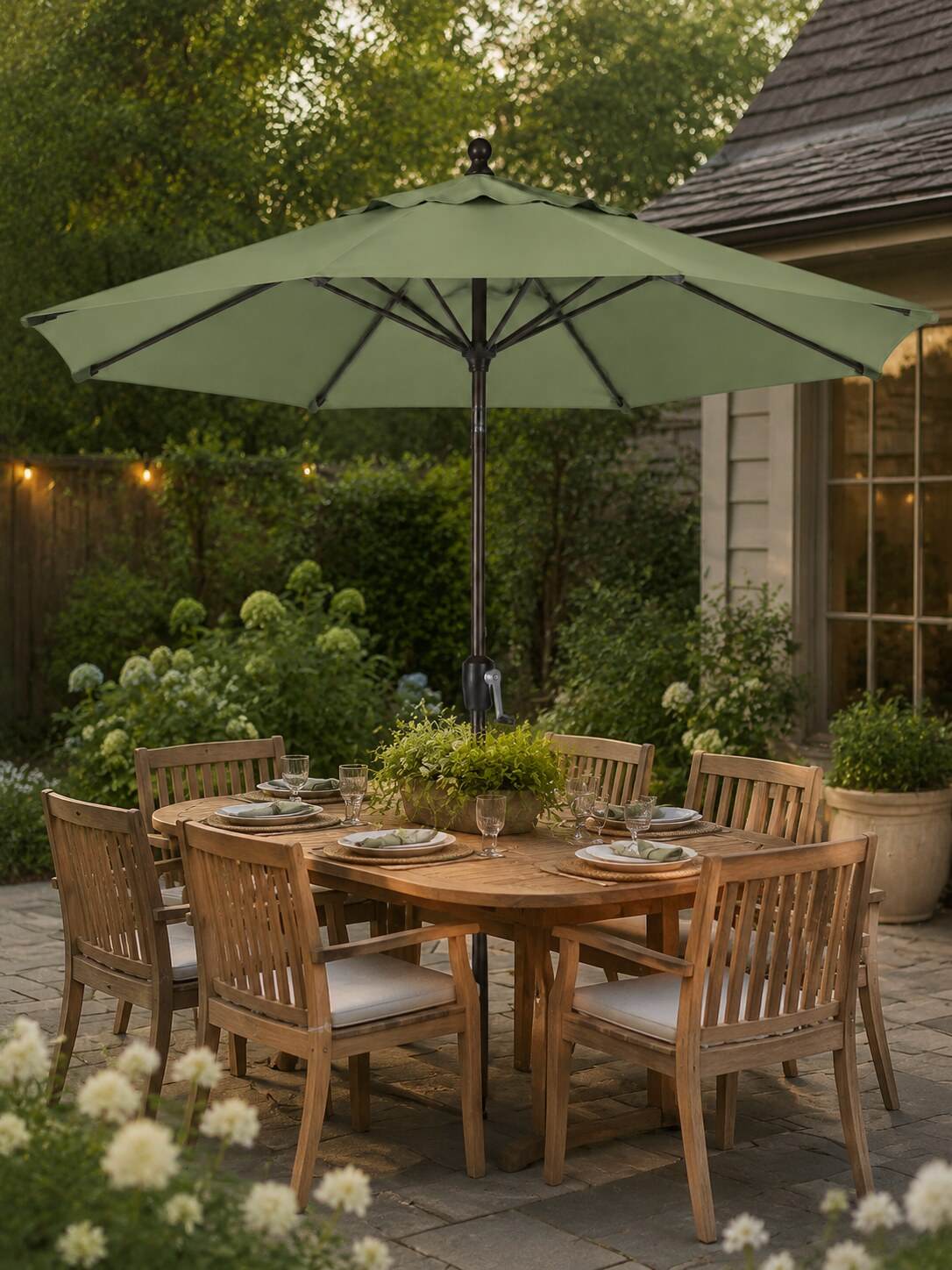

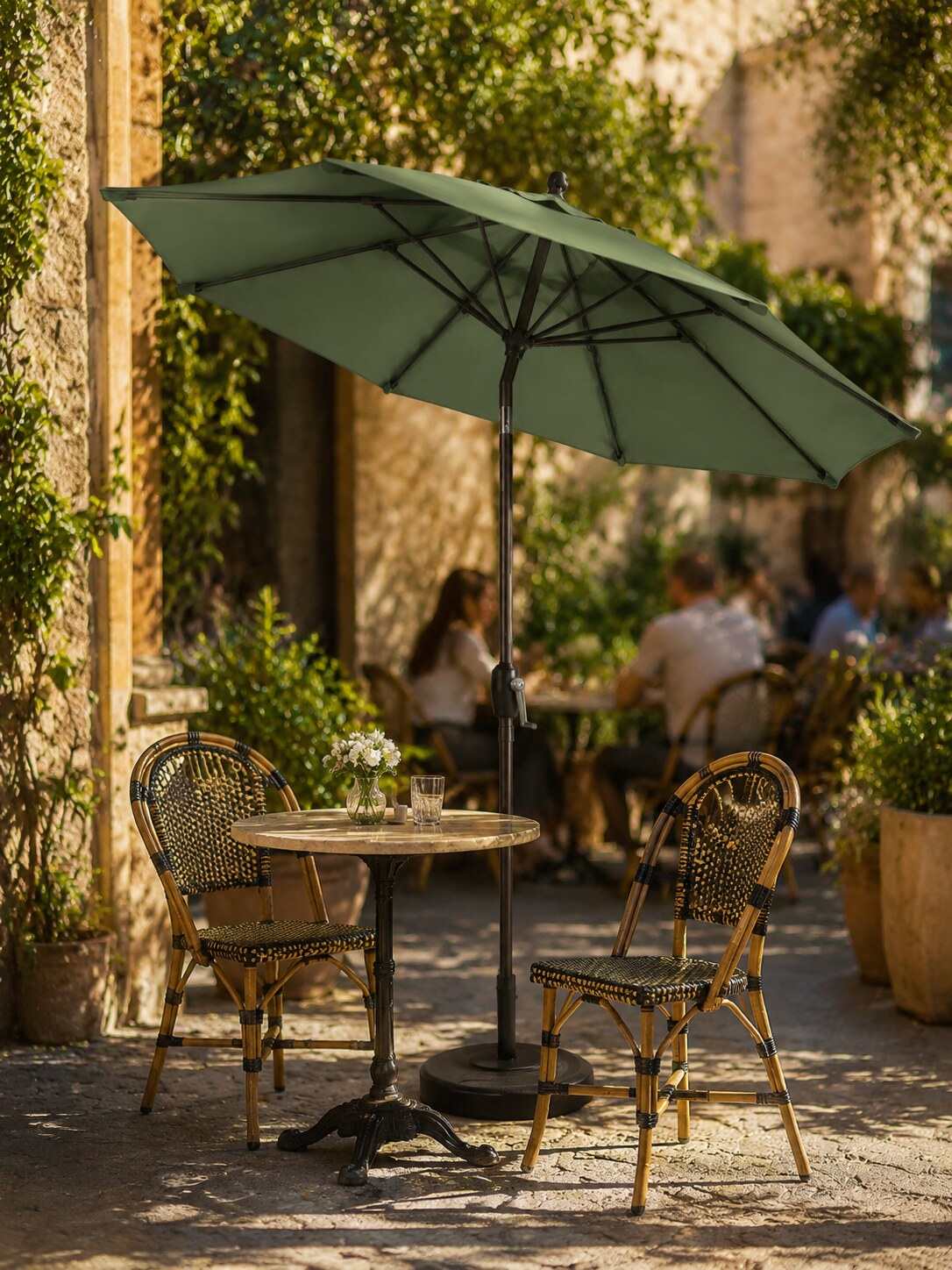

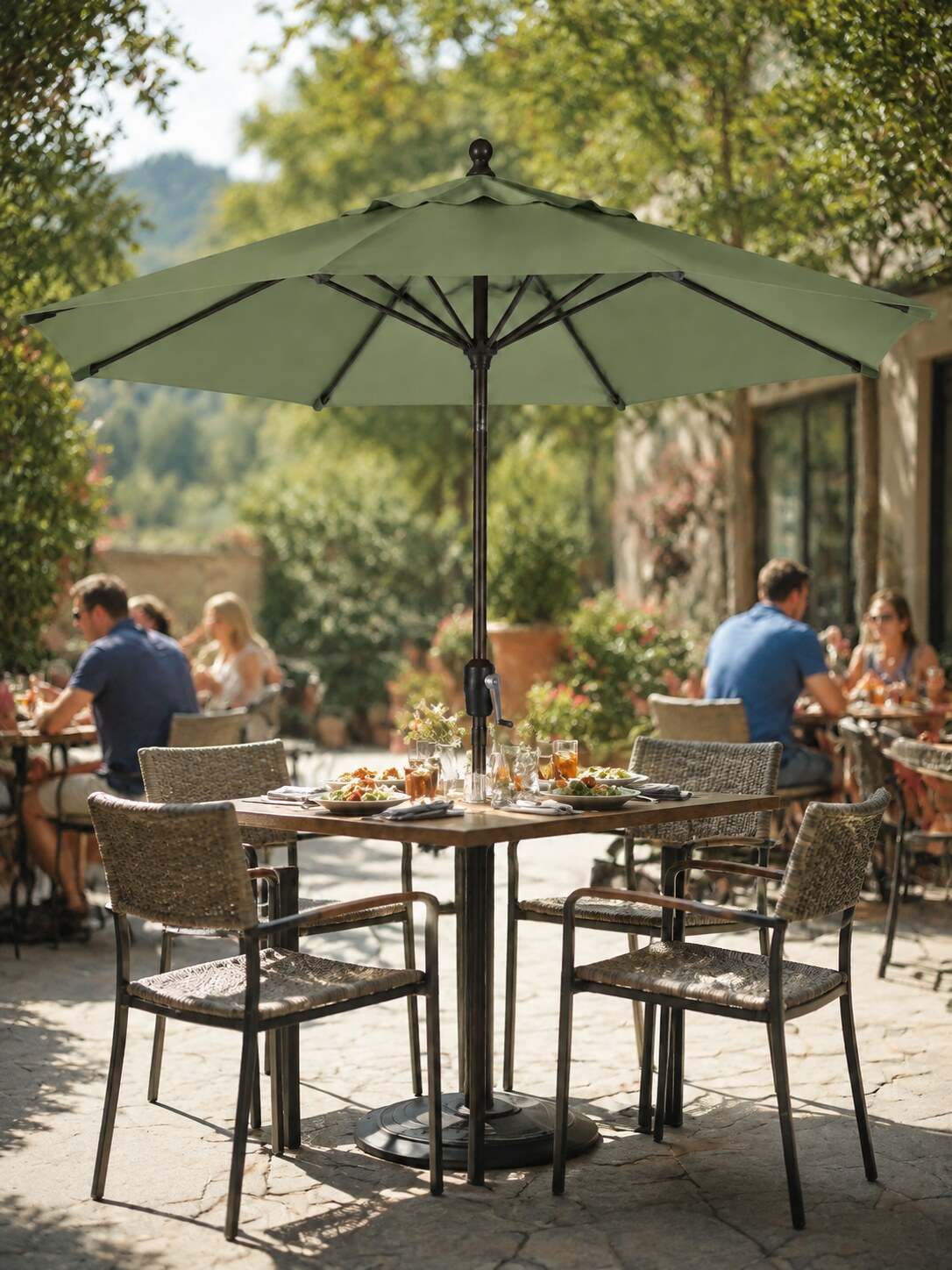

Shade for Dining and Seating Areas

The approximately 274 cm canopy is suited to common four-to-six-seat outdoor table arrangements. A central opening in a compatible table can support the pole, but a correctly sized weighted base is still required.

Crank Lift and Tilt Adjustment

The side crank reduces the lifting effort needed to open a larger canopy. A push-button joint above the crank allows directional tilt. Close the umbrella before changing position, moving furniture or adjusting the base.

Vented Eight-Rib Canopy

The top vent allows some air to escape through the canopy. It does not make the umbrella storm-rated. Stability depends on the frame, base, table support, installation and weather conditions.

KEY FEATURES

9 ft / 274 cm octagonal canopy

Eight-rib support structure

Single top vent

Manual crank opening

Push-button tilt adjustment

Approx. 38 mm lower pole reference diameter

Aluminum and steel frame options

Solid, striped or printed canopy programs

Residential and hospitality packaging options

OEM AND PRIVATE-LABEL OPTIONS

Polyester, olefin and solution-dyed fabric options

Custom Pantone color and panel combinations

Single-position logo or repeated valance print

Straight edge, scalloped edge or valance

Single- or double-vent development

Aluminum or steel pole and rib choices

Black, bronze, white or custom powder coating

Alternative crank housing and finial colors

Protective cover, compatible base and LED accessory options

Assembly instructions, barcode labels and retail cartons

RECOMMENDED APPLICATIONS

Garden furniture retailers

Restaurant and café suppliers

Hotels and resorts

Residential patio brands

Pool and leisure retailers

E-commerce outdoor stores

Contract and hospitality distributors

WHOLESALE QUOTATION

State the quantity, canopy diameter, fabric and GSM, UV or colorfastness target, vent construction, rib and pole material, pole diameter, frame finish, print coverage, base requirement, packaging and destination.
